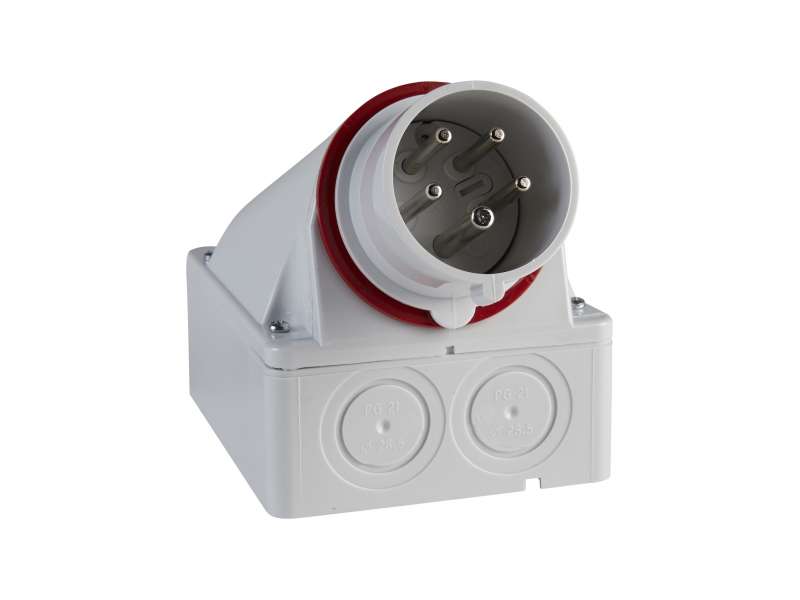

Schneider Electric PratiKa industrijski utikač sa faznim inverterom - 16 A - 3P + N + E - 380...415 V AC - IP44 ; 83531
PratiKa industrial plug - 16 A - 3P + N + E - 380...415 V AC - IP44...
VAT-exclusive price: 1.698,00 |
VAT-inclusive price: 2.037,60 |
PratiKa industrial plug - 16 A - 3P + N + E - 380...415 V AC - IP44
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Plug with phase inverter
|
|
| device short name |
PratiKa plug
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
3P + N + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Wall-mounted
|
|
|---|---|---|
| plug, socket, control station shape |
Angled
|
|
| [In] rated current |
16 A
|
|
| [Ue] rated operational voltage |
380...415 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| plug, socket material |
Self-extinguishing engineering polymer
|
|
| contacts material |
Pins: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| cable cross section |
1…4 mm²
|
|
| cable outer diameter |
8…15 mm
|
|
| net weight |
0.42 kg
|
|
| base dimension |
106 x 130 mm
|
|
| height |
134 mm
|
|
| width |
106 mm
|
|
| depth |
125 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Red
|
| standards |
EN 60309-1
EN 60309-2 |
|
|---|---|---|
| IP degree of protection |
IP44 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 62262
|
|
| fire resistance |
850 °C conforming to IEC 60695-2-1
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| operating altitude |
2000 m
|
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Package 1 Weight |
0.662 kg
|
|
|---|---|---|
| Package 1 Height |
1.600 dm
|
|
| Package 1 width |
1.050 dm
|
|
| Package 1 Length |
1.300 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
-
Pratika 83531
