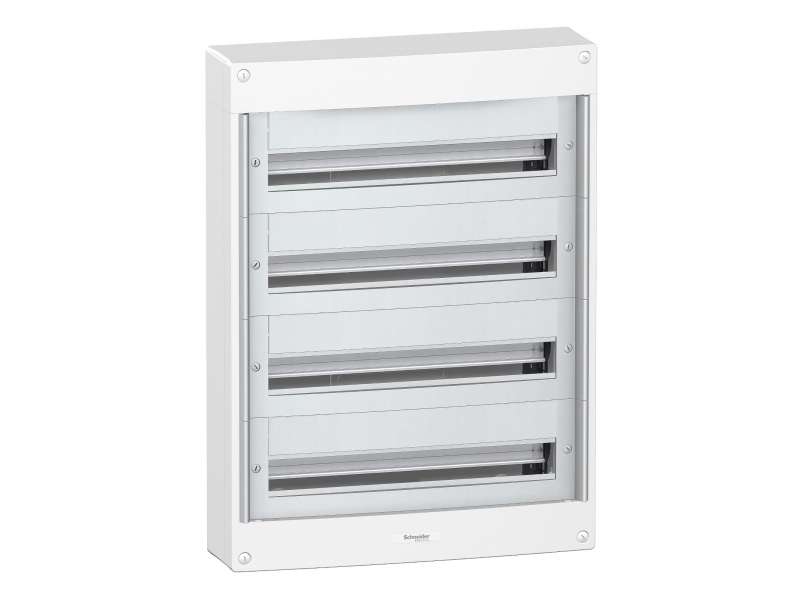

Schneider Electric Pragma nadgradni orman - IP30 - 4 x 24 modula - bez vrata ; PRA20424
Pragma surface enclosure - IP30 - 4 x 24 modules - without door...
VAT-exclusive price: 38.404,00 |
VAT-inclusive price: 46.084,80 |
Pragma surface enclosure - IP30 - 4 x 24 modules - without door
| range |
Pragma
|
|
|---|---|---|
| product or component type |
Enclosure
|
|
| enclosure type |
Distribution enclosure
|
|
| width |
550 mm
|
|
| height |
750 mm
|
|
| depth |
148 mm
|
|
| Nb of 18 mm modules per row |
24
|
|
| Nb of horizontal rows |
4
|
|
| electrical insulation class |
Double insulation
Class II |
|
| provided equipment |
2 x terminal block
1 x identification label 1 x marking kit 1 x blanking plate strip |
|
| Type of door |
Without
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| 9 mm pitches |
48
|
|
| total number of 18 mm modules |
96
|
|
| power dissipation in W |
87 W
|
|
| [In] rated current |
160 A
|
|
| [Ui] rated insulation voltage |
400 V
|
|
| type of rail |
Multifix
|
|
| mounting plate description |
Without mounting plate
|
|
| cable entry |
Cut-out plates
Removable plates Trunking Cable or tube |
|
| number of terminal blocks |
1 earth (Quick) with 32 outgoers
1 neutral (Quick) with 35 outgoers |
|
| distribution block outgoers |
1 x 50 mm² for earth
3 x 25 mm² for earth 28 x 6 mm² for earth 1 x 50 mm² for neutral 28 x 6 mm² for neutral 6 x 25 mm² for neutral |
|
| enclosure material |
Back part: technoplastic
Front face: technoplastic Back part: metal Front face: metal |
|
| colour |
Enclosure: white (RAL 9016)
Front face: grey (RAL 7004) |
|
| market segment |
Small commercial
Residential |
|
| targeted country |
Czech republic
Russia Finland Greece Hungary Sweden Baltic |
|
| embedding depth |
0 mm
|
|
| internal depth |
120 mm
|
| fire resistance |
Back part: 650 °C
Front face: 650 °C |
|
|---|---|---|
| IP degree of protection |
IP30 without door
IP40 with door |
|
| IK degree of protection |
IK08 without door
IK09 with door |
|
| environmental characteristic |
Halogen free
|
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…60 °C
|
|
| standards |
IEC 60670-1
IEC 60670-24 IEC 61439-1 IEC 61439-3 |
| Package 1 Weight |
12.600 kg
|
|
|---|---|---|
| Package 1 Height |
1.550 dm
|
|
| Package 1 width |
6.500 dm
|
|
| Package 1 Length |
8.400 dm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Halogen content performance |
Halogen free product
|
| Warranty |
18 months
|
|---|
