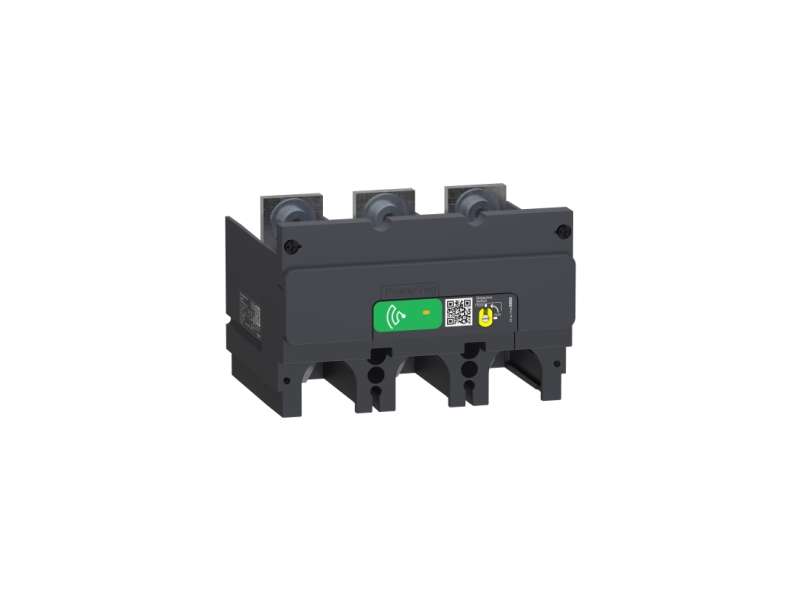

Schneider Electric PowerTag Monokonekcija bežični senzor 630 A, 3P;LV434022
energy sensor, PowerTag Monoconnect 630A 3P...
VAT-exclusive price: 74.804,00 |
VAT-inclusive price: 89.764,80 |
energy sensor, PowerTag Monoconnect 630A 3P
| Range of product | PowerLogic |
|---|---|
| product name | PowerTag M630 |
| product or component type | Energy sensor |
| Poles | 3P |
| Maximum current [Imax] | 630 A |
| [Ib] basic current | 100 A |
| starting current | 400 mA |
| saturation current | 1260 A |
| product specific application |
Energy management Overload alarm Power factor Load monitoring Circuit monitoring |
| Concentrator compatibility |
Acti9 Smartlink SI B Acti9 Smartlink SI D Acti9 PowerTag Link C Acti9 PowerTag Link Acti9 PowerTag Link HD Harmony Hub Wiser IP module EcoStruxure Panel Server Universal EcoStruxure Panel Server Advanced PrismaSet Active |
| range compatibility |
Compact NSX Compact NSX400...630 Compact NS Compact NS400/630 TeSys TeSys GV6 EasyPact EasyPact CVS400 EasyPact EasyPact CVS630 |
| type of measurement |
Active and reactive energy Active and reactive power Apparent power Current Voltage Power factor |
| accuracy class |
Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 Class 2 apparent power conforming to IEC 61557-12 Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12 |
| metering type |
Power factor 0...1: class 1 at 25 °C conforming to IEC 61557-12 Active energy Ep IN/OUT/tot 0...281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12 Reactive energy Ep IN/OUT/tot 0...281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12 Voltage U12, U23, U31 320...480 V: class 0.5 at 25 °C conforming to IEC 61557-12 Voltage V1N, V2N, V3N 184...276 V: class 0.5 at 25 °C conforming to IEC 61557-12 Apparent power S, S1, S2, S5 221 VA...1048 kVA: class 2 at 25 °C conforming to IEC 61557-12 Active power P, P1, P2, P5 221 W...1048 kW: class 1 at 25 °C conforming to IEC 61557-12 Reactive power Q, Q1, Q2, Q5 221 VAR...1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12 Current I1, I2, I3, Iavg 20...630 A: class 1 at 25 °C conforming to IEC 61557-12 Frequency 45...65 Hz |
| mounting location | Bottom |
| mounting support | On circuit breaker |
| connection pitch | 45 mm |
| product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms |
| emission power | 10 mW |
| [Imp] maximum permanent current | 1.2 x In |
|---|---|
| mounting mode | Bolt-on |
| tightening torque | 50 N.m |
| supply voltage |
230 V AC, +/- 20 %, between phase and neutral 400 V AC, +/- 20 %, between phases |
| network frequency |
50 Hz 60 Hz |
| Maximum power consumption | 3.7 VA |
| standards |
IEC 61557-12 IEC 61010 ETSI EN 301 487-1 |
| height | 91 mm |
| width | 140 mm |
| depth | 110 mm |
| net weight | 800 g |
| colour | Dark grey (RAL 7016) |
| quality labels | CE |
|---|---|
| directives | 2014/53/EU - radio equipment directive |
| operating altitude | 0...2000 m |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| overvoltage category | IV conforming to IEC 61010-1 |
| measurement category | Category III conforming to IEC 61010-2-030 |
| IP degree of protection | IP20 |
| IK degree of protection | IK07 conforming to IEC 60068-2-75 test Ehb |
| pollution degree | 3 |
| relative humidity | 0…95 % at 55 °C conforming to IEC 60721-3-3 |
| vibration resistance | 3M4 conforming to IEC 60721-3-3 |
| electromagnetic compatibility |
Industrial electromagnetic environment conforming to IEC 61326-1 Radiated EMC conforming to ETSI EN 301 489-17 Electromagnetic emission conforming to IEC 62311 |
| environmental characteristics | Indoor use |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.06 kg |
| Package 1 Height | 15 cm |
| Package 1 width | 12 cm |
| Package 1 Length | 17 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 2.47 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Weight | 44.0 kg |
| Package 3 Height | 73 cm |
| Package 3 width | 60 cm |
| Package 3 Length | 80 cm |
| Warranty | 18 months |
|---|
