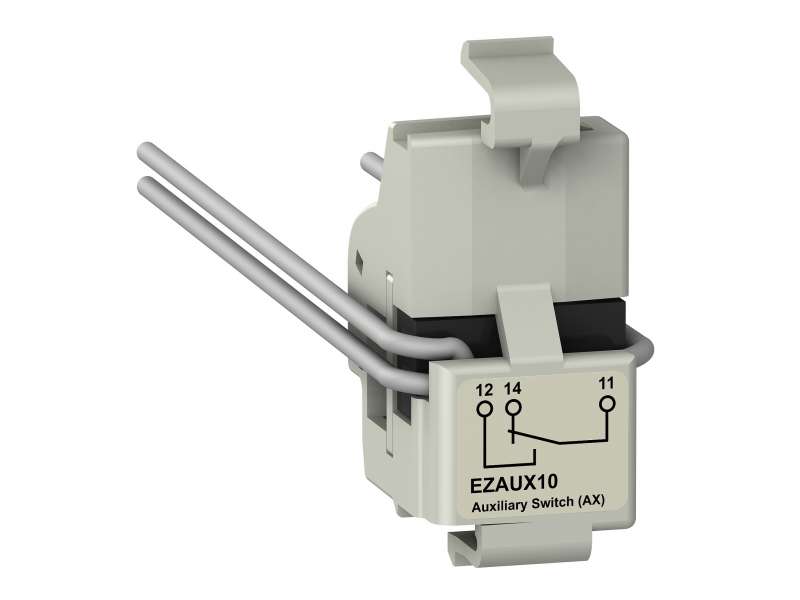

Name: Schneider Electric Pomoćni prekidač AX, EasyPact EZC 100, EasyPact CVS 100BS, 1 CO kontakt;EZAUX10
Brand: Schneider Electric
SKU: EZAUX10
Price: 1976.40 RSD
Availability: OutOfStock

Schneider Electric Pomoćni prekidač AX, EasyPact EZC 100, EasyPact CVS 100BS, 1 CO kontakt;EZAUX10

Auxiliary switch AX, EasyPact EZC 100, EasyPact CVS 100BS, 1 common point changeover contact...

Brand: Schneider Electric
Product Code: EZAUX10
Availability: Check availability

VAT-exclusive price: 1.647,00

VAT-inclusive price: 1.976,40

Qnt:

Auxiliary switch AX, EasyPact EZC 100, EasyPact CVS 100BS, 1 common point changeover contact

Main
range of product	EZC100
range	EasyPact
device short name	AX
product or component type	Switch
device application	Signalling
range compatibility	EZC circuit breaker
signal contacts composition	1 NO/NC

Complementary
auxiliary contacts type	Standard
[Ith] conventional free air thermal current	5 A
[Ie] rated operational current	AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC
minimum load	10 mA at 24 V
auxiliary connection terminal	Lead wire

Packing Units
Package 1 Weight	0.040 kg
Package 1 Height	0.250 dm
Package 1 width	0.700 dm
Package 1 Length	0.850 dm

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
