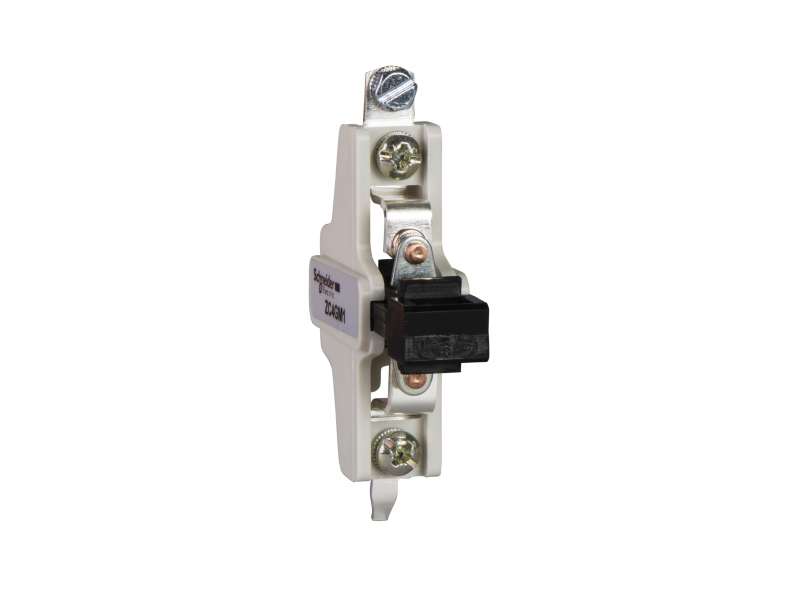

Name: Schneider Electric Pomoćni kontaktni blok - 1P - 1 NC - za TeSys B ; ZC4GM2
Brand: Schneider Electric
SKU: ZC4GM2
Price: 10745.91 RSD
Availability: OutOfStock

Schneider Electric Pomoćni kontaktni blok - 1P - 1 NC - za TeSys B ; ZC4GM2

auxiliary contact block - 1 pole - 1 NC - for TeSys B...

Brand: Schneider Electric
Product Code: ZC4GM2
Availability: Check availability

VAT-exclusive price: 8.954,93

VAT-inclusive price: 10.745,91

Qnt:

auxiliary contact block - 1 pole - 1 NC - for TeSys B

Main
range of product	TeSys B
range	TeSys
product or component type	Auxiliary contact block
product compatibility	LC1B CR1B
pole contact composition	1 NC

Complementary
[Ith] conventional free air thermal current	20 A
mechanical durability	1000000 cycles
connections - terminals	Control circuit: connector 1 cable(s) 4 mm² with cable end Control circuit: connector 1 cable(s) 6 mm² without cable end Control circuit: connector 2 cable(s) 4 mm² with cable end Control circuit: connector 2 cable(s) 6 mm² without cable end

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	38 g
Package 1 Height	2 cm
Package 1 width	6.5 cm
Package 1 Length	8 cm
Unit Type of Package 2	S02
Number of Units in Package 2	100
Package 2 Weight	4.293 kg
Package 2 Height	15 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
