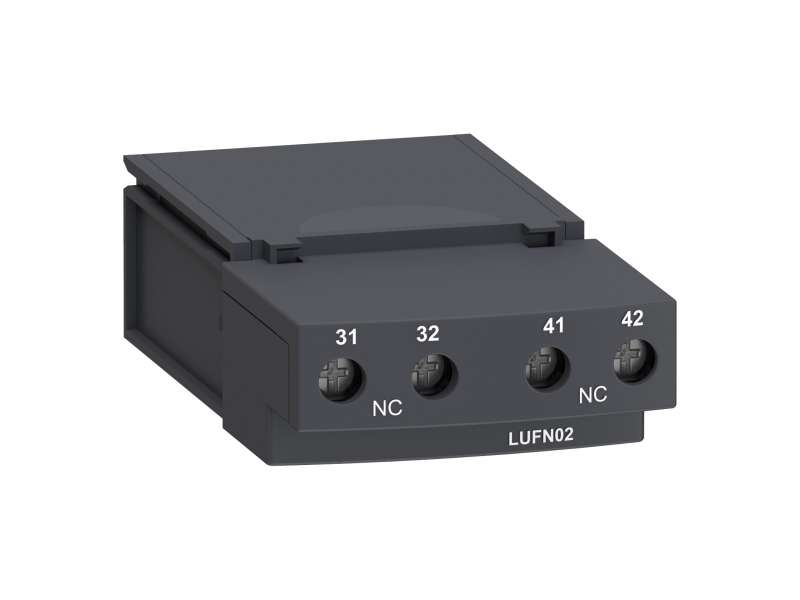

Schneider Electric Pomoćni kontakti LUF - 2NC

auxiliary contacts LUF - 2NC...

Brand: Schneider Electric
Product Code: LUFN02
Availability: Check availability

VAT-exclusive price: 1.316,00

VAT-inclusive price: 1.579,20

Qnt:

auxiliary contacts LUF - 2NC

Main
range	TeSys
device short name	LUFN
Product or component type	Auxiliary contact

Complementary
auxiliary contact composition	2 NC
[Ue] rated operational voltage	<= 250 V AC <= 250 V DC
[Ui] rated insulation voltage	250 V conforming to CSA 250 V conforming to IEC 60947-5-1 250 V conforming to UL
[Ith] conventional free air thermal current	5 A
minimum switching voltage	17 V
minimum switching current	5 mA
Net weight	0.05 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	45 g
Package 1 Height	9.5 cm
Package 1 width	3.4 cm
Package 1 Length	4.8 cm
Unit Type of Package 2	S01
Number of Units in Package 2	30
Package 2 Weight	1.638 kg
Package 2 Height	15 cm
Package 2 width	15 cm
Package 2 Length	40 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
