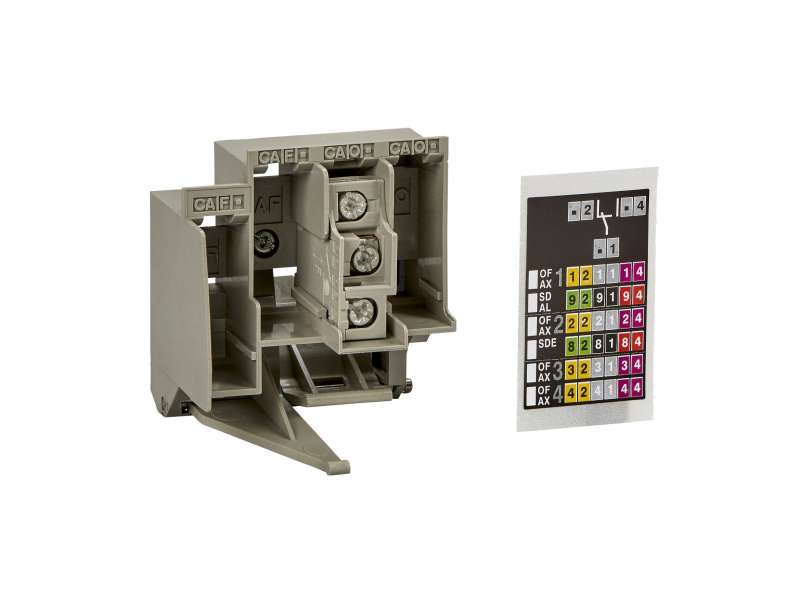

Schneider Electric Pomoćni kontakt - SD - 1 NO/NC - 6 A - za NS630b…3200;33004
standard auxiliary contact, ComPact NS630b to NS3200, fixed, circuit breaker status SD, 1 changeover contact type...
VAT-exclusive price: 2.956,00 |
VAT-inclusive price: 3.547,20 |
standard auxiliary contact, ComPact NS630b to NS3200, fixed, circuit breaker status SD, 1 changeover contact type
| product or component type |
Auxiliary contact
|
|
|---|---|---|
| device short name |
SD
|
|
| device application |
Breaker status monitoring
|
|
| range compatibility |
ComPact NS630b...1600
ComPact NS1600b...3200 |
|
| signal contacts composition |
1 NO/NC
|
| local signalling |
Trip indicator for relay trip indicator
|
|
|---|---|---|
| auxiliary contacts type |
Standard
|
|
| mounting mode |
Clip-on
|
|
| [Ith] conventional free air thermal current |
6 A
|
|
| minimum load |
100 mA at 24 V DC
|
|
| [Ie] rated operational current |
AC-12: 6 A at 24 V AC 50/60 Hz
AC-12: 6 A at 48 V AC 50/60 Hz AC-12: 6 A at 110 V AC 50/60 Hz AC-12: 6 A at 220/240 V AC 50/60 Hz AC-12: 6 A at 380/440 V AC 50/60 Hz AC-12: 6 A at 480 V AC 50/60 Hz AC-12: 6 A at 660/690 V AC 50/60 Hz AC-15: 6 A at 24 V AC 50/60 Hz AC-15: 6 A at 48 V AC 50/60 Hz AC-15: 5 A at 110 V AC 50/60 Hz AC-15: 4 A at 220/240 V AC 50/60 Hz AC-15: 2 A at 380/440 V AC 50/60 Hz AC-15: 1.5 A at 480 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz DC-12: 6 A at 24 V DC DC-12: 2.5 A at 48 V DC DC-12: 0.6 A at 110 V DC DC-12: 0.3 A at 250 V DC DC-14: 1 A at 24 V DC DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| Package 1 Weight |
0.700 kg
|
|
|---|---|---|
| Package 1 Height |
0.200 dm
|
|
| Package 1 width |
0.400 dm
|
|
| Package 1 Length |
0.500 dm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
ComPact NS 33004
