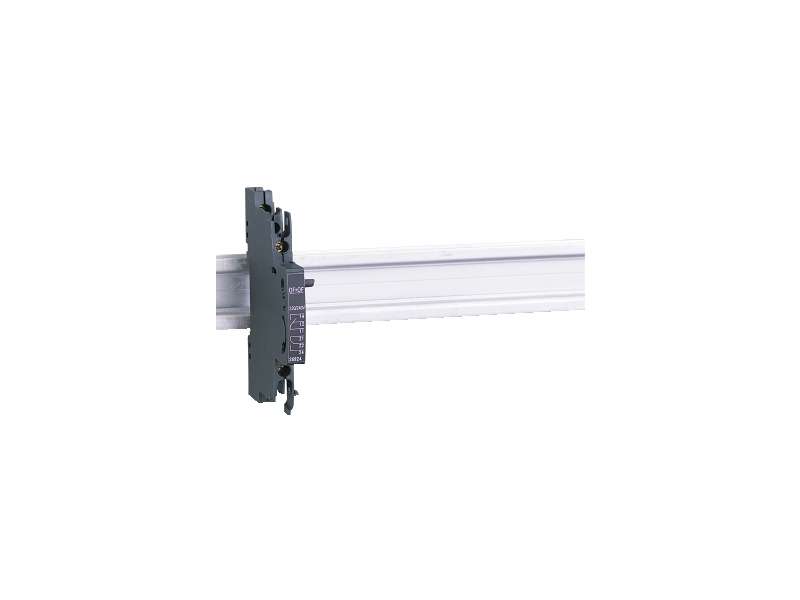

Schneider Electric Pomoćni kontakt - 2 OC - 6 A - 220..240 V - za NG125;19071

Auxiliary double OC contact, Acti9 NG125, 2 OC, 220VAC to 240VAC (max 6A), 415VAC (max 3A)...

Brand: Schneider Electric
Product Code: 19071
Availability: Check availability

VAT-exclusive price: 7.285,00

VAT-inclusive price: 8.742,00

Qnt:

Description
Specification

Auxiliary double OC contact, Acti9 NG125, 2 OC, 220VAC to 240VAC (max 6A), 415VAC (max 3A)

Main
range of product	Acti 9
product or component type	Double OC contact
device short name	OF and OF
signal contacts composition	2 C/O
[In] rated current	3 A: 415 V AC - 50/60 Hz 6 A: <= 240 V AC - 50/60 Hz 1 A: 130 V DC 3 A: <= 48 V DC
9 mm pitches	1

Complementary
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1
[Uimp] rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-5-1
mounting mode	Fixed
mounting support	DIN rail
height	102.8 mm
width	15.3 mm
depth	75.5 mm
electrical durability	10000 cycles conforming to EN/IEC 60947-5-1
connections - terminals	Plate terminal1 cable(s) 0.5…2.5 mm² - rigid Plate terminal1 cable(s) 0.5…1.5 mm² - flexible Plate terminal1 cable(s) 0.5…1.5 mm² - flexible with ferrule Plate terminal2 cable(s) 2.5 mm² - rigid Plate terminal2 cable(s) 2.5 mm² - flexible Plate terminal2 cable(s) 1.5 mm² - flexible with ferrule
wire stripping length	10 mm
tightening torque	1 N.m

Environment
standards	EN/IEC 60947-5-1
product certifications	LCIE ASEFA KEMA ASTA
pollution degree	3 conforming to EN/IEC 60947-5-1
tropicalisation	2 conforming to EN/IEC 60947-5-1
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.4 cm
Package 1 Width	7.4 cm
Package 1 Length	10.2 cm
Package 1 Weight	65.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	81
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	6.337 kg
Unit Type of Package 3	BB1
Number of Units in Package 3	9
Package 3 Height	12.0 cm
Package 3 Width	9.0 cm
Package 3 Length	24.0 cm
Package 3 Weight	649.0 g
