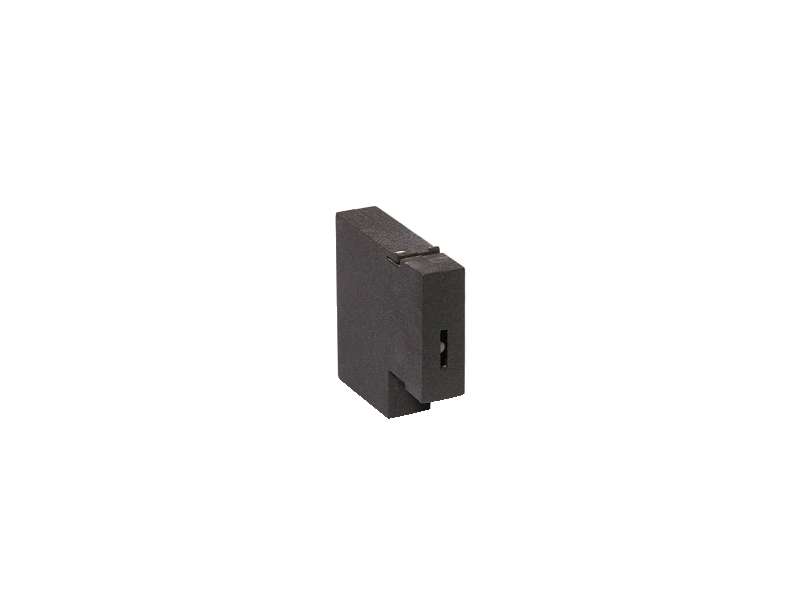

Schneider Electric Pomoćni kontakt - 1 SDV 1NO - za NG125 - 250 V - 2 A;19058

Auxiliary fault contact, Acti9 Vigi NG125, 1 SDV 1NO, 250VAC (0.1A to 1A)...

Brand: Schneider Electric
Product Code: 19058
Availability: Check availability

VAT-exclusive price: 20.587,00

VAT-inclusive price: 24.704,40

Qnt:

Description
Specification

Auxiliary fault contact, Acti9 Vigi NG125, 1 SDV 1NO, 250VAC (0.1A to 1A)

Main
range of product	Acti 9
product or component type	Fault contact
device short name	SDV NO
signal contacts composition	1 NO
[In] rated current	0.1…1 A: 250 V AC - 50/60 Hz
9 mm pitches	1

Complementary
[Ui] rated insulation voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
mounting mode	Plug-on
mounting location	Upstream
height	36 mm
width	8.8 mm
depth	34.64 mm
electrical durability	10000 cycles
connections - terminals	Plate terminal1 cable(s) 0.5…2.5 mm² - rigid Plate terminal1 cable(s) 0.5…1.5 mm² - flexible Plate terminal1 cable(s) 0.5…1.5 mm² - flexible with ferrule Plate terminal2 cable(s) 2.5 mm² - rigid Plate terminal2 cable(s) 2.5 mm² - flexible Plate terminal2 cable(s) 1.5 mm² - flexible with ferrule
wire stripping length	10 mm
tightening torque	1 N.m

Environment
pollution degree	3
tropicalisation	2
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.5 cm
Package 1 Width	8.0 cm
Package 1 Length	10.6 cm
Package 1 Weight	35.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	81
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.889 kg
Unit Type of Package 3	BB1
Number of Units in Package 3	9
Package 3 Height	11.5 cm
Package 3 Width	8.5 cm
Package 3 Length	23.7 cm
Package 3 Weight	378.0 g
