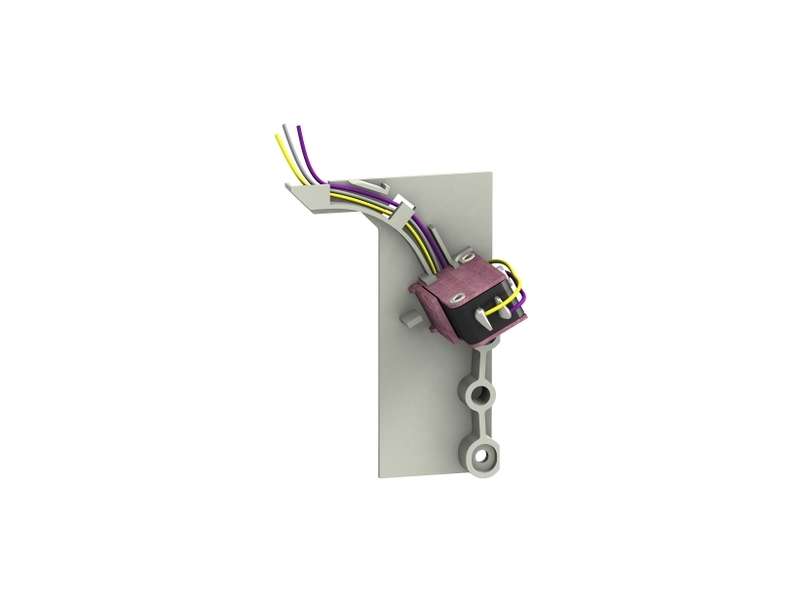

standard early break contact, ComPact NSX400 to NSX630, rotary handle position CAO, 1 changeover contact type
Main
|
range of product |
ComPact NSX400...630
ComPact NSX400...630 DC |
|
range |
ComPact |
|
device short name |
Early-break contact |
|
product or component type |
Auxiliary contact |
|
device application |
Control |
|
range compatibility |
ComPact NSX400
ComPact NSX630
Compact NSX400 DC
Compact NSX630 DC
PowerPact L |
Complementary
|
auxiliary contacts type |
Standard |
|
auxiliary contacts operation |
Early-break |
|
mounting mode |
Drawout |
|
[Ith] conventional free air thermal current |
6 A |
|
[Ie] rated operational current |
AC-12: 6 A at 110 V AC 50/60 Hz
AC-12: 6 A at 220/240 V AC 50/60 Hz
AC-12: 6 A at 24 V AC 50/60 Hz
AC-12: 6 A at 380/440 V AC 50/60 Hz
AC-12: 6 A at 48 V AC 50/60 Hz
AC-12: 6 A at 480 V AC 50/60 Hz
AC-12: 6 A at 660/690 V AC 50/60 Hz
AC-15: 0.1 A at 660/690 V AC 50/60 Hz
AC-15: 1.5 A at 480 V AC 50/60 Hz
AC-15: 2 A at 380/440 V AC 50/60 Hz
AC-15: 4 A at 220/240 V AC 50/60 Hz
AC-15: 5 A at 110 V AC 50/60 Hz
AC-15: 6 A at 24 V AC 50/60 Hz
AC-15: 6 A at 48 V AC 50/60 Hz
DC-12: 0.3 A at 250 V DC
DC-12: 0.6 A at 110 V DC
DC-12: 2.5 A at 48 V DC
DC-12: 6 A at 24 V DC
DC-14: 0.03 A at 250 V DC
DC-14: 0.05 A at 110 V DC
DC-14: 0.2 A at 48 V DC
DC-14: 1 A at 24 V DC |
|
minimum load |
100 mA at 24 V DC |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
48.0 g |
|
Package 1 Height |
4.0 cm |
|
Package 1 width |
6.5 cm |
|
Package 1 Length |
8.8 cm |
|
Unit Type of Package 2 |
S03 |
|
Number of Units in Package 2 |
108 |
|
Package 2 Weight |
5.249 kg |
|
Package 2 Height |
30.0 cm |
|
Package 2 width |
30.0 cm |
|
Package 2 Length |
40.0 cm |
Contractual warranty
|
Warranty |
18 months |
