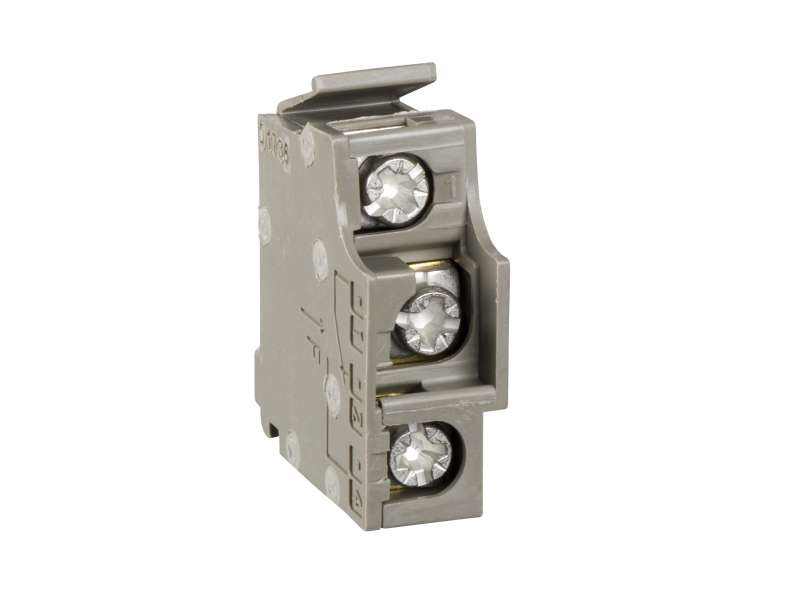

Auxiliary contact

OF
SD
SDE
SDV

Breaker status monitoring

ComPact NS630b...1600
ComPact NS1600b...3200
Compact INS
Compact INV
ComPact NSX
EasyPact CVS
PowerPact Multistandard
ComPact NSX DC

1 NO/NC

General electric fault

ON/OFF indication for open/close
Trip indicator for relay trip indicator
Fault trip for electrical fault

Standard

Clip-on

6 A

100 mA at 24 V DC

AC-12: 6 A at 24 V AC 50/60 Hz
AC-12: 6 A at 48 V AC 50/60 Hz
AC-12: 6 A at 110 V AC 50/60 Hz
AC-12: 6 A at 220/240 V AC 50/60 Hz
AC-12: 6 A at 380/440 V AC 50/60 Hz
AC-12: 6 A at 480 V AC 50/60 Hz
AC-12: 6 A at 660/690 V AC 50/60 Hz
AC-15: 6 A at 24 V AC 50/60 Hz
AC-15: 6 A at 48 V AC 50/60 Hz
AC-15: 5 A at 110 V AC 50/60 Hz
AC-15: 4 A at 220/240 V AC 50/60 Hz
AC-15: 2 A at 380/440 V AC 50/60 Hz
AC-15: 1.5 A at 480 V AC 50/60 Hz
AC-15: 0.1 A at 660/690 V AC 50/60 Hz
DC-12: 6 A at 24 V DC
DC-12: 2.5 A at 48 V DC
DC-12: 0.6 A at 110 V DC
DC-12: 0.3 A at 250 V DC
DC-14: 1 A at 24 V DC
DC-14: 0.2 A at 48 V DC
DC-14: 0.05 A at 110 V DC
DC-14: 0.03 A at 250 V DC

Spare part for Compact NS630b...1600
Spare part for Compact NS1600b...3200

PCE

1

24 g

2 cm

8.3 cm

8.5 cm

BB1

10

246 g

11 cm

3 cm

15 cm

S03

300

7.8 kg

30 cm

30 cm

40 cm

REACh Declaration

Yes

Compliant
EU RoHS Declaration

Yes

Yes

Yes

China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
