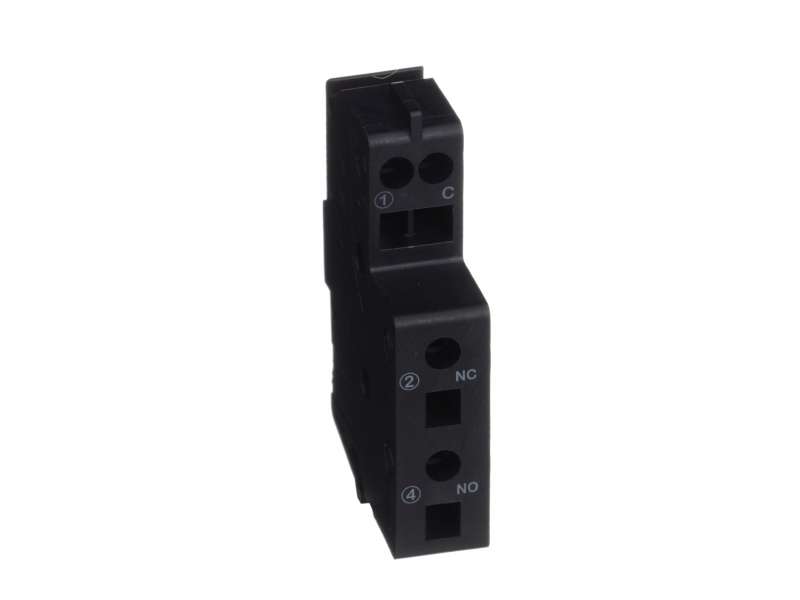

Schneider Electric Pomoćni kontakt (opružni) OF/SD - 1 NO/NC
standard auxiliary contact, ComPact NSXm, circuit breaker status OF/SD, 1 changeover contact type...
VAT-exclusive price: 2.061,00 |
VAT-inclusive price: 2.473,20 |
standard auxiliary contact, ComPact NSXm, circuit breaker status OF/SD, 1 changeover contact type
| product or component type | Auxiliary contact |
|---|---|
| device short name |
SD OF |
| device application | Breaker status monitoring |
| range compatibility |
PowerPact B ComPact NSXm |
| signal contacts composition | 1 NO/NC |
| fault type |
Overload Short-circuit |
|---|---|
| local signalling |
ON/OFF indication for open/close Trip indicator for relay trip indicator |
| auxiliary contacts type | Standard |
| mounting mode | Clip-on |
| [Ith] conventional free air thermal current | 5 A |
| [Ie] rated operational current |
AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-12: 5 A at 110...127 V AC 50/60 Hz AC-12: 5 A at 220/240 V AC 50/60 Hz AC-12: 5 A at 380/440 V AC 50/60 Hz AC-12: 5 A at 660/690 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz AC-15: 4 A at 110...127 V AC 50/60 Hz AC-15: 3 A at 220/240 V AC 50/60 Hz AC-15: 2.5 A at 380/440 V AC 50/60 Hz AC-15: 0.1 A at 660/690 V AC 50/60 Hz DC-12: 5 A at 24 V DC DC-12: 2.5 A at 48 V DC DC-12: 0.6 A at 110 V DC DC-12: 0.3 A at 250 V DC DC-13: 2.5 A at 24 V DC DC-13: 1.2 A at 48 V DC DC-13: 0.35 A at 110 V DC DC-13: 0.05 A at 250 V DC DC-14: 1 A at 24 V DC DC-14: 0.2 A at 48 V DC DC-14: 0.05 A at 110 V DC DC-14: 0.03 A at 250 V DC |
| minimum load | 2 mA at 17 V DC |
| auxiliary connection terminal | Spring |
| wire stripping length | 8 mm for front connection |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 25 g |
| Package 1 Height | 1.2 cm |
| Package 1 width | 7.5 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 260 g |
| Package 2 Height | 14 cm |
| Package 2 width | 5 cm |
| Package 2 Length | 25 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 220 |
| Package 3 Weight | 6.176 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| California proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
-
ComPact NSXm LV426950
