Schneider Electric Polica na preklapanje za vrata - 600 mm orman - opterećenje 30 kg;NSYSDT6

Folding support tray - 600 mm enclosure - 30 kg load...

Brand: Schneider Electric
Product Code: NSYSDT6
Availability: Check availability

VAT-exclusive price: 53.484,00

VAT-inclusive price: 64.180,80

Qnt:

Description
Specification

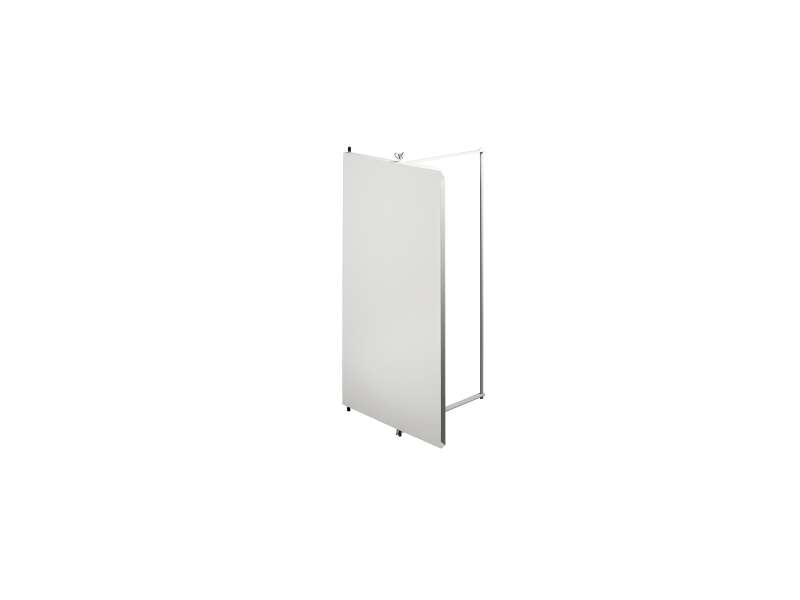

Folding support tray - 600 mm enclosure - 30 kg load

Main
range	Spacial
product or component type	Folding support tray
Application	Door accessories
Nominal dimensions of the housing	W: 600 mm
mounting location	Door cross rail On door reinforcement frame
mounting support	Direct mounting
range compatibility	Spacial SF, SM, SFX and SMX enclosures
device composition	1 x fixing element 1 x folding support tray
quantity per set	Set of 1

Complementary
material	Door: steel
colour	Door: grey (RAL 7035)
surface finish	Painted
fixing mode	Direct fixing - door location
adjustment	Adjustable in height, steps of 25 mm for door
operating angle	45 ° 60 ° 75 ° 90 °
maximum load	30 kg
height	50 mm
width	325 mm nominal:
depth	350 mm
thickness	1.5 mm

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.55 kg
Package 1 Height	5 cm
Package 1 width	36.5 cm
Package 1 Length	46 cm
Unit Type of Package 2	PAL
Number of Units in Package 2	80
Package 2 Weight	260.0 kg
Package 2 Height	100 cm
Package 2 width	120 cm
Package 2 Length	80 cm
