Schneider Electric Poklopna ploča za UA ili BA; LVS03671

Front plate, PrismaSeT P, for UA or BA controller, with cut-out, 4M...

Brand: Schneider Electric
Product Code: LVS03671
Availability: Check availability

VAT-exclusive price: 4.022,00

VAT-inclusive price: 4.826,40

Qnt:

Description
Specification

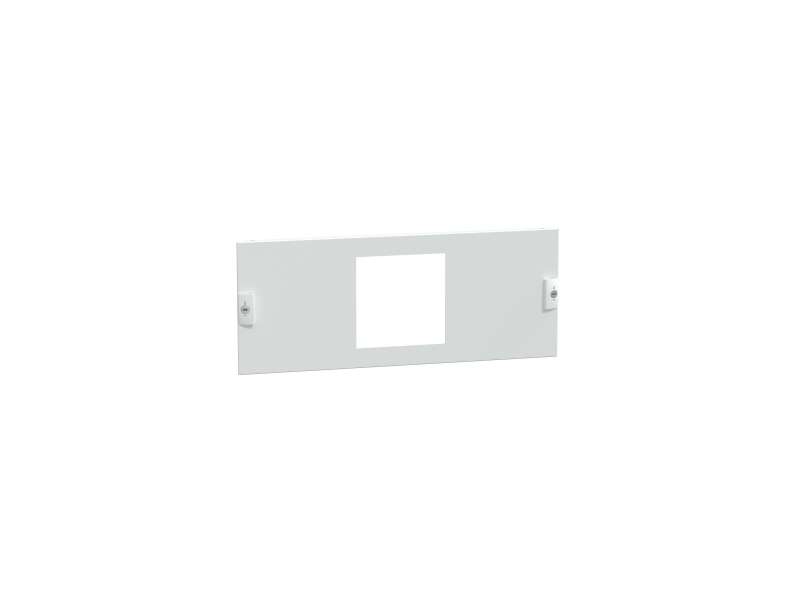

Front plate, PrismaSeT P, for UA or BA controller, with cut-out, 4M

Main
Range	PrismaSeT
Range of product	PrismaSeT P
Product or component type	Front plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT P) cubicle
Type of front plate	Cut-out
Installed device	Source changeover: fixed BA controller - horizontal installation Source changeover: fixed UA controller - horizontal installation

Complementary
Enclosure/cubicle description	Cubicle - width 650 mm depth 600 mm
Connection position	Direct connection
Number of vertical modules [50 mm]	4
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA
Material	Steel
Surface finish	Textured Matt
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)
Height	200 mm
Width	500 mm
Net weight	0.74 kg
Quantity per set	Set of 1
functional unit	650 mm 600 mm PrismaSeT P cubicle source changeover BA controller fixed horizontal 1 direct 4 650 mm 600 mm PrismaSeT P cubicle source changeover UA controller fixed horizontal 1 direct 4

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.0 cm
Package 1 Width	21.5 cm
Package 1 Length	51.5 cm
Package 1 Weight	769.0 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	16.5 cm
Package 2 Width	22.5 cm
Package 2 Length	53.0 cm
Package 2 Weight	7.69 kg
Unit Type of Package 3	P12
Number of Units in Package 3	180
Package 3 Height	58.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	150.42 kg
