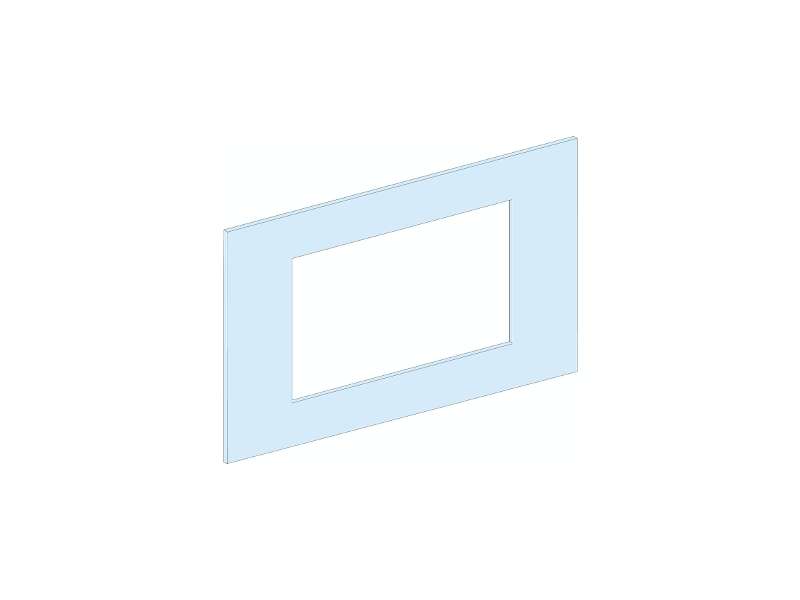

Schneider Electric Poklopna ploča za NS3200; LVS03716
Front plate, PrismaSeT P, for ComPacT NS1600b to 3200, vertical fixed, toggle, 8M...
VAT-exclusive price: 6.121,00 |
VAT-inclusive price: 7.345,20 |
Front plate, PrismaSeT P, for ComPacT NS1600b to 3200, vertical fixed, toggle, 8M
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed NS1600b - control: toggle - vertical installation ComPact: fixed NS2000...3200 - control: toggle - vertical installation |
| Poles description |
1 x 3P: mounting plate support: NS1600b vertical installation 1 x 4P: mounting plate support: NS1600b vertical installation 1 x 3P: mounting plate support: NS2000...3200 vertical installation 1 x 4P: mounting plate support: NS2000...3200 vertical installation |
| Operating position | Horizontal |
| Enclosure/cubicle description |
Cubicle - width 650 mm depth 400 mm Cubicle - width 650 mm depth 600 mm |
|---|---|
| Connection position | Front connection |
| Number of vertical modules [50 mm] | 8 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 400 mm |
| Width | 500 mm |
| Net weight | 1.02 kg |
| Quantity per set | Set of 1 |
| functional unit |
650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 3P 1 front connection on adaptor 14 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 4P 1 front connection on adaptor 14 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 3P 1 front connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 4P 1 front connection on adaptor 16 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 41 cm |
| Package 1 Length | 51 cm |
| Package 1 Weight | 1.216 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.5 cm |
| Package 2 Width | 43 cm |
| Package 2 Length | 53 cm |
| Package 2 Weight | 7.8 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 56.5 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 73 kg |
