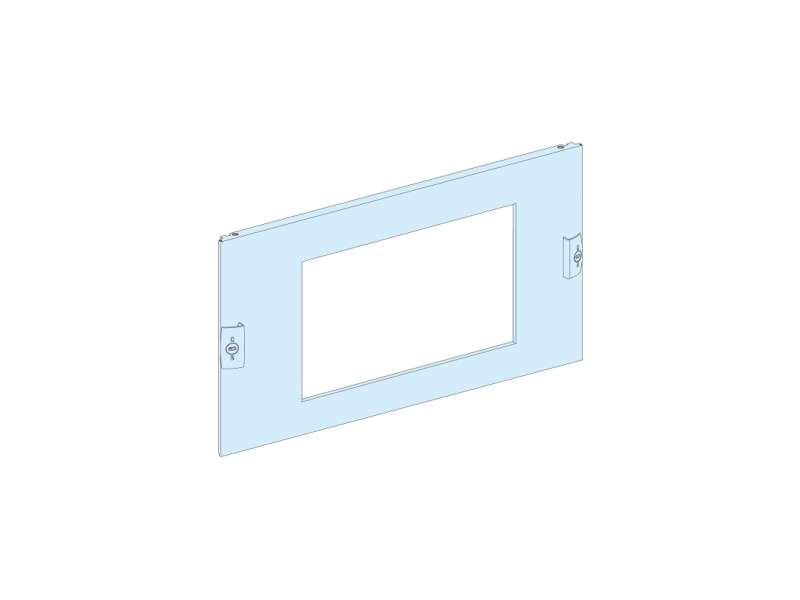

Schneider Electric Poklopna ploča za INS2500, 3P ili 4P; LVS03715
Front plate, PrismaSeT P, for ComPacT INS-INV2000 to 2500 3P/4P, vertical fixed, 10M...
VAT-exclusive price: 8.960,00 |
VAT-inclusive price: 10.752,00 |
Front plate, PrismaSeT P, for ComPacT INS-INV2000 to 2500 3P/4P, vertical fixed, 10M
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed INS2000...2500 - control: direct front rotary handle - vertical installation ComPact: fixed INV2000...2500 - control: direct front rotary handle - vertical installation |
| Poles description |
1 x 3P: mounting plate support: INS2000...2500 vertical installation 1 x 4P: mounting plate support: INS2000...2500 vertical installation 1 x 3P: mounting plate support: INV2000...2500 vertical installation 1 x 4P: mounting plate support: INV2000...2500 vertical installation |
| Operating position | Vertical |
| Enclosure/cubicle description |
Cubicle - width 650 mm depth 400 mm Cubicle - width 650 mm depth 600 mm |
|---|---|
| Connection position |
Front connection Rear connection |
| Number of vertical modules [50 mm] | 10 |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 500 mm |
| Width | 500 mm |
| Net weight | 3.54 kg |
| Quantity per set | Set of 1 |
| functional unit |
650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 50.000 cm |
| Package 1 Length | 50.000 cm |
| Package 1 Weight | 2.828 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 22.000 cm |
| Package 2 Width | 54.000 cm |
| Package 2 Length | 55.000 cm |
| Package 2 Weight | 12.200 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 81.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 82.000 kg |
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed INS2000...2500 - control: direct front rotary handle - vertical installation ComPact: fixed INV2000...2500 - control: direct front rotary handle - vertical installation |
| Poles description |
1 x 3P: mounting plate support: INS2000...2500 vertical installation 1 x 4P: mounting plate support: INS2000...2500 vertical installation 1 x 3P: mounting plate support: INV2000...2500 vertical installation 1 x 4P: mounting plate support: INV2000...2500 vertical installation |
| Operating position | Vertical |
| Enclosure/cubicle description |
Cubicle - width 650 mm depth 400 mm Cubicle - width 650 mm depth 600 mm |
|---|---|
| Connection position |
Front connection Rear connection |
| Number of vertical modules [50 mm] | 10 |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 500 mm |
| Width | 500 mm |
| Net weight | 3.54 kg |
| Quantity per set | Set of 1 |
| functional unit |
650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INS2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 16 650 mm 400 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 16 650 mm 600 mm PrismaSeT P cubicle ComPact INV2000...2500 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 16 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 50.000 cm |
| Package 1 Length | 50.000 cm |
| Package 1 Weight | 2.828 kg |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 22.000 cm |
| Package 2 Width | 54.000 cm |
| Package 2 Length | 55.000 cm |
| Package 2 Weight | 12.200 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 81.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 82.000 kg |
