Schneider Electric Poklopna ploča za horizontalni fiksni NS1600 sa ručicom ili okretnom ručicom, 4P; LVS03687

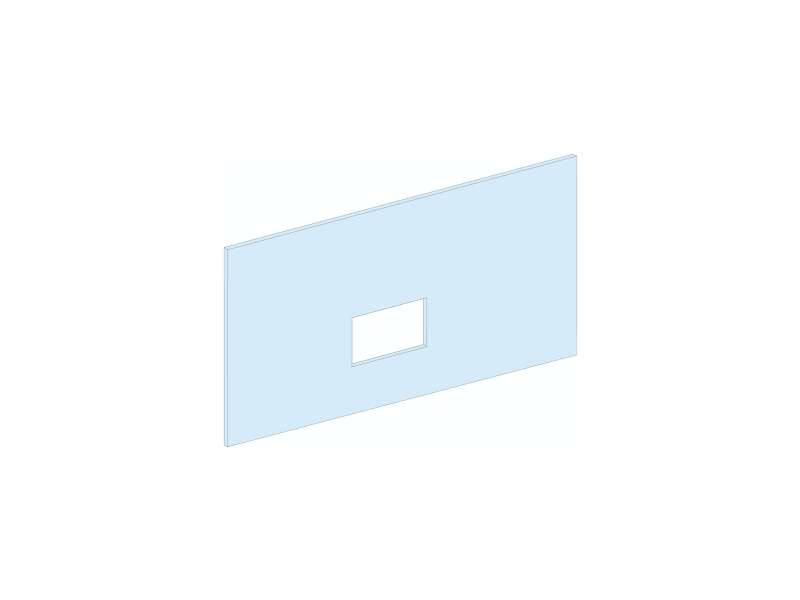

Front plate, PrismaSeT P, for NS630b to 1000 4P, horizontal fixed, toggle, rotary handle, 7M, W650...
VAT-exclusive price: 6.994,00 |
VAT-inclusive price: 8.392,80 |
Front plate, PrismaSeT P, for NS630b to 1000 4P, horizontal fixed, toggle, rotary handle, 7M, W650
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed NS630b...1000 - control: toggle - horizontal installation ComPact: fixed NS630b...1000 - control: direct front rotary handle - horizontal installation |
| Poles description |
1 x 3P: mounting plate support: NS630b...1000 horizontal installation 1 x 4P: mounting plate support: NS630b...1000 horizontal installation |
| Operating position | Horizontal |
| Enclosure/cubicle description |
Cubicle - width 650 mm depth 800 mm Cubicle + duct - width 650 mm depth 400 mm |
|---|---|
| Connection position |
Front connection Rear connection |
| Number of vertical modules [50 mm] | 7 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 350 mm |
| Width | 500 mm |
| Net weight | 1.78 kg |
| Quantity per set | Set of 1 |
| functional unit |
650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 front connection 7 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 connection transfer assembly 8 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 front connection 7 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 connection transfer assembly 8 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 3P 1 rear connection 7 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 rear connection 7 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 front connection 7 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 connection transfer assembly 8 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 front connection 7 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 connection transfer assembly 8 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 4P 1 rear connection 7 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 rear connection 7 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 35.000 cm |
| Package 1 Length | 50.000 cm |
| Package 1 Weight | 1.761 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.731 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 72.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 45.000 kg |
