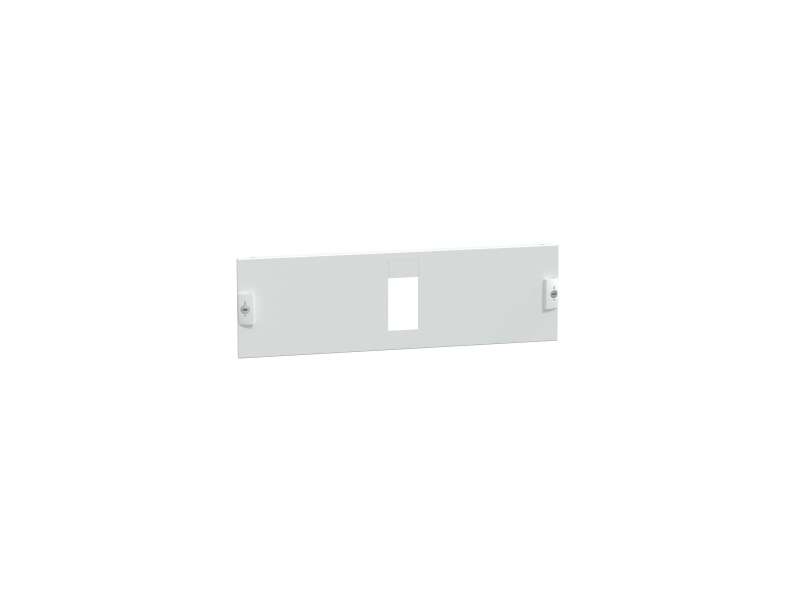

Schneider Electric Poklopna ploča NSXm/VIGI/SDx horizontalna ručica Š600 3M; LVS03330
Front plate, PrismaSeT P and G, for NSXm/Vigi/SDx, horizontal fixed, toggle, cut-out, 3M, W600...
VAT-exclusive price: 2.238,00 |
VAT-inclusive price: 2.685,60 |
Front plate, PrismaSeT P and G, for NSXm/Vigi/SDx, horizontal fixed, toggle, cut-out, 3M, W600
| Range | PrismaSeT |
|---|---|
| Range of product |
PrismaSeT G PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed NSXm without earth leakage protection - control: toggle - horizontal installation ComPact: fixed NSXm with earth leakage protection - control: toggle - horizontal installation |
| Poles description | 1 x 3P or 4P: mounting plate support: NSXm horizontal installation |
| Operating position | Horizontal |
| Enclosure/cubicle description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm Floor-standing enclosure + duct - width 600 + 300 mm Wall-mounted enclosure + duct - width 600 + 300 mm |
|---|---|
| Connection position | Direct connection |
| Number of vertical modules [50 mm] | 3 |
| Standards |
IEC 61439-1 IEC 61439-2 |
| Product certifications | ASTA |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 150 mm |
| Quantity per set | Set of 1 |
| functional unit |
600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm without fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSXm with fixed toggle horizontal 3P or 4P 1 direct 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.5 cm |
| Package 1 Width | 16.5 cm |
| Package 1 Length | 51.5 cm |
| Package 1 Weight | 644 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17 cm |
| Package 2 Width | 17.5 cm |
| Package 2 Length | 53 cm |
| Package 2 Weight | 6.693 kg |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 10 |
| Package 3 Height | 30 cm |
| Package 3 Width | 40 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 6.934 kg |
