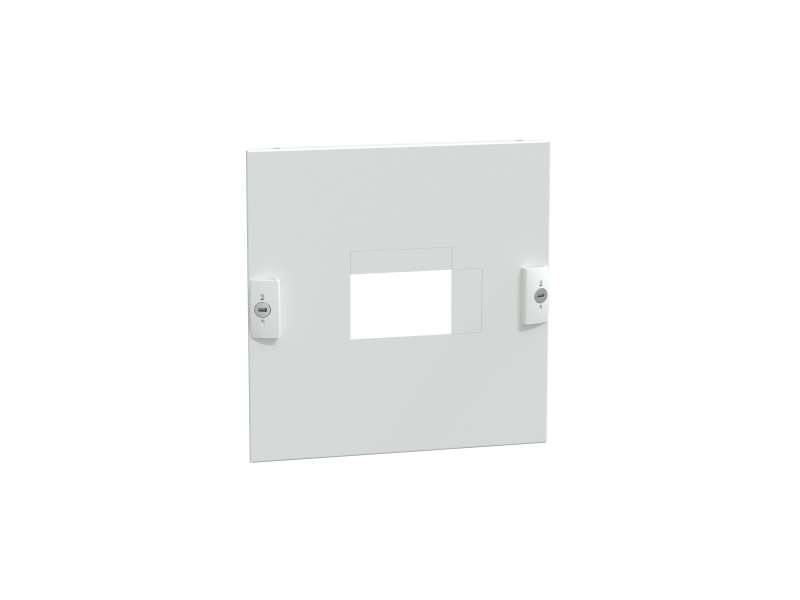

Schneider Electric Poklopna ploča NSXm VERT. rotirajuća Š400 5M; LVS03225
Front plate, PrismaSeT P, for Vigi NSXm up to 160, vertical fixed, Toggle/ rotary handle, 5M, W400...
VAT-exclusive price: 5.115,00 |
VAT-inclusive price: 6.138,00 |
Front plate, PrismaSeT P, for Vigi NSXm up to 160, vertical fixed, Toggle/ rotary handle, 5M, W400
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) cubicle |
| Type of front plate | Cut-out |
| Installed device |
ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSXm without earth leakage protection - control: direct rotary handle - vertical installation |
| Poles description | 1 x 3P or 4P: mounting plate support: NSXm vertical installation |
| Operating position | Vertical |
| Enclosure/cubicle description | Cubicle duct - width 400 mm depth 400 mm |
|---|---|
| Connection position | Direct connection |
| Number of vertical modules [50 mm] | 5 |
| Standards |
IEC 61496-1 IEC 61439-2 |
| Product certifications | ASTA |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 250 mm |
| Quantity per set | Set of 1 |
| functional unit |
400 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 8 400 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed direct rotary handle vertical 3P or 4P 1 direct 8 400 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3 cm |
| Package 1 Width | 26 cm |
| Package 1 Length | 26.5 cm |
| Package 1 Weight | 554 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17 cm |
| Package 2 Width | 27.5 cm |
| Package 2 Length | 27.5 cm |
| Package 2 Weight | 5.687 kg |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 10 |
| Package 3 Height | 17 cm |
| Package 3 Width | 27.5 cm |
| Package 3 Length | 27.5 cm |
| Package 3 Weight | 5.687 kg |
