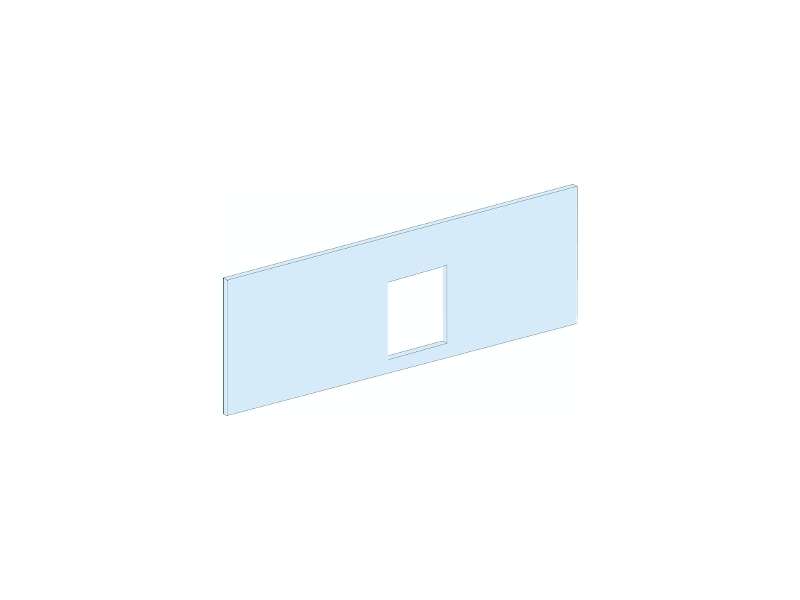

Schneider Electric Poklopna ploča NSX250 horizontalne ugradnje, utični, ručica Š600 4M; LVS03290
Front plate, PrismaSeT G, for NSX100/250, horizontal fixed, plug-in, toggle, 4M, W600+W300...
VAT-exclusive price: 2.633,00 |
VAT-inclusive price: 3.159,60 |
Front plate, PrismaSeT G, for NSX100/250, horizontal fixed, plug-in, toggle, 4M, W600+W300
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Type of front plate | Cut-out |
| Installed device |
ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - horizontal installation ComPact: plug-in NSX250 without earth leakage protection - control: toggle - horizontal installation |
| Poles description |
1 x 3P: mounting plate support: NSX100...160 horizontal installation 1 x 4P: mounting plate support: NSX100...160 horizontal installation 1 x 3P: mounting plate support: NSX250 horizontal installation 1 x 4P: mounting plate support: NSX250 horizontal installation |
| Operating position | Horizontal |
| Enclosure/cubicle description |
Floor-standing enclosure + duct - width 600 + 300 mm Wall-mounted enclosure + duct - width 600 + 300 mm |
|---|---|
| Connection position | Direct connection |
| Number of vertical modules [50 mm] | 4 |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 200 mm |
| Product weight | 0.8 kg |
| Quantity per set | Set of 1 |
| functional unit |
600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX100...160 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX100...160 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX100...160 without plug-in toggle horizontal 4P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX100...160 without plug-in toggle horizontal 4P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX250 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX250 without plug-in toggle horizontal 3P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX250 without plug-in toggle horizontal 4P 1 direct with long terminal shield 4 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX250 without plug-in toggle horizontal 4P 1 direct with long terminal shield 4 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 21.3 cm |
| Package 1 Length | 51.5 cm |
| Package 1 Weight | 811.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 16.5 cm |
| Package 2 Width | 22.2 cm |
| Package 2 Length | 53.0 cm |
| Package 2 Weight | 8.345 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 33.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 22.0 kg |
