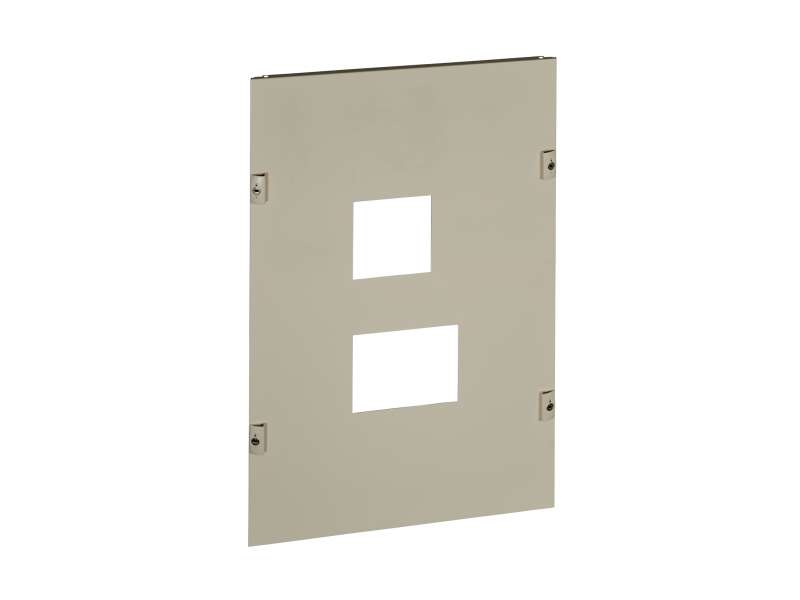

Schneider Electric Poklopna ploča merenje NSX630 Š600 15M; LVS03285

FRONT PLATE TARIF NSX630 W600 15M...

Brand: Schneider Electric
Product Code: LVS03285
Availability: Check availability

VAT-exclusive price: 8.170,00

VAT-inclusive price: 9.804,00

Qnt:

FRONT PLATE TARIF NSX630 W600 15M

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Front plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
Type of front plate	Cut-out
Installed device	ComPact: fixed INV400 - control: direct front rotary handle - vertical installation ComPact: fixed NSX400 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installation
Poles description	1 x 4P: mounting plate support: INV400 vertical installation 1 x 4P: mounting plate support: NSX400 vertical installation
Operating position	Superposed

Complementary
Enclosure/cubicle description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm
Number of vertical modules [50 mm]	15
Standards	IEC 61439-1 IEC 61439-2
Product certifications	ASTA
Surface finish	Textured Matt
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)
Height	750 mm
Width	600 mm
Product weight	2.6 kg
Quantity per set	Set of 1
functional unit	600 mm PrismaSeT G floor-standing enclosure ComPact INV400 fixed direct front rotary handle vertical 4P 1 direct 600 mm PrismaSeT G wall-mounted enclosure ComPact INV400 fixed direct front rotary handle vertical 4P 1 direct 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 without fixed toggle vertical 4P 1 direct 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct 17 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct 17

Environment
IP degree of protection	IP30

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.800 cm
Package 1 Width	51.500 cm
Package 1 Length	76.200 cm
Package 1 Weight	2.679 kg
Unit Type of Package 2	BB1
Number of Units in Package 2	4
Package 2 Height	19.000 cm
Package 2 Width	53.500 cm
Package 2 Length	82.200 cm
Package 2 Weight	11.680 kg
Unit Type of Package 3	P12
Number of Units in Package 3	24
Package 3 Height	53.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	81.500 kg
