Schneider Electric Poklopna ploča ISFT 100 vertikalni Š600/650 6M; LVS03320

Front plate, PrismaSeT P and G, for FupacT ISFT 100, vertical fixed, with cut-out, 6M, W600/W650...

Brand: Schneider Electric
Product Code: LVS03320
Availability: Check availability

VAT-exclusive price: 3.423,00

VAT-inclusive price: 4.107,60

Qnt:

Description
Specification

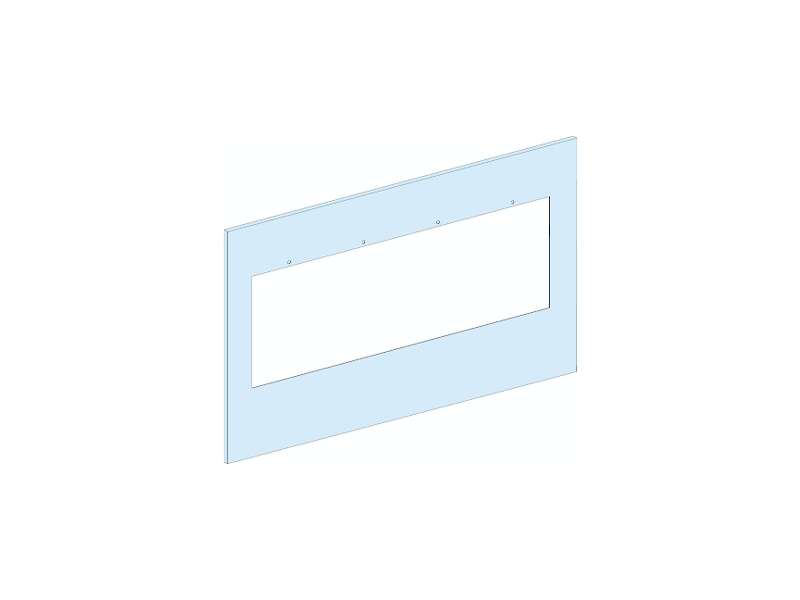

Front plate, PrismaSeT P and G, for FupacT ISFT 100, vertical fixed, with cut-out, 6M, W600/W650

Main
Range	PrismaSeT
Range of product	PrismaSeT G PrismaSeT P
Product or component type	Front plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) cubicle
Type of front plate	Cut-out
Installed device	FuPact: fixed ISFT100 - control: fuse carriers handle - vertical installation
Poles description	5 x 3P: mounting plate support: ISFT100 vertical installation
Operating position	Horizontal

Complementary
Enclosure/cubicle description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm
Connection position	Direct connection
Number of vertical modules [50 mm]	6
Standards	IEC 61439-2 IEC 61439-1
Product certifications	ASTA
Material	Steel
Surface finish	Matt Textured
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)
Height	300 mm
Width	500 mm
Net weight	1.18 kg
Quantity per set	Set of 1
functional unit	600 mm PrismaSeT G floor-standing enclosure FuPact ISFT100 fixed fuse carriers handle vertical 3P 5 direct 7 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT100 fixed fuse carriers handle vertical 3P 5 direct 7 650 mm 400 mm PrismaSeT P cubicle FuPact ISFT100 fixed fuse carriers handle vertical 3P 5 direct 6

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.0 cm
Package 1 Width	31.5 cm
Package 1 Length	51.0 cm
Package 1 Weight	1.174 kg
Unit Type of Package 2	CAR
Number of Units in Package 2	10
Package 2 Height	16.5 cm
Package 2 Width	32.5 cm
Package 2 Length	52.5 cm
Package 2 Weight	12.1 kg
Unit Type of Package 3	P12
Number of Units in Package 3	90
Package 3 Height	46.0 cm
Package 3 Width	80.0 cm
Package 3 Length	120.0 cm
Package 3 Weight	121.0 kg
