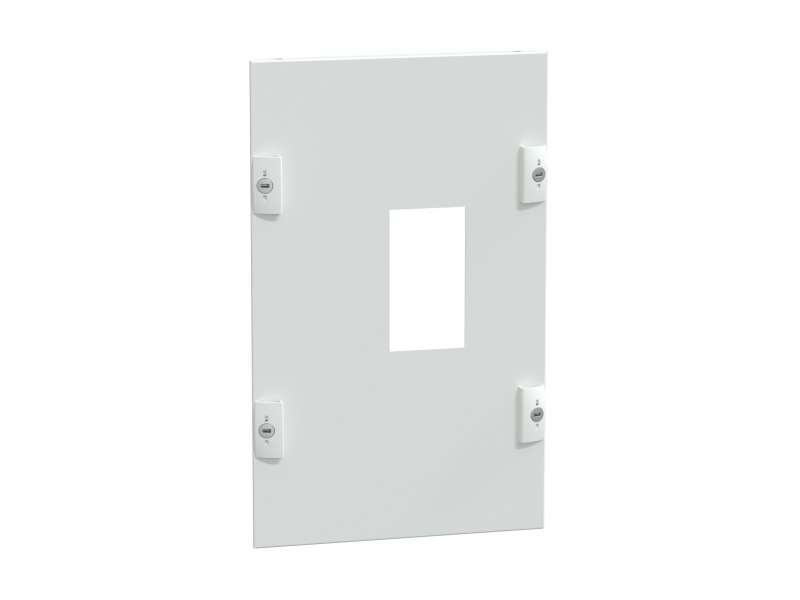

Schneider Electric Poklopna ploča CVS 630 vertikalne ugradnje, fiksni, ručica Š300 8M; LVS03280
FRONT PLATE CVS 630 V.FIX.TOGGLE W300 8M...
VAT-exclusive price: 2.696,00 |
VAT-inclusive price: 3.235,20 |
FRONT PLATE CVS 630 V.FIX.TOGGLE W300 8M
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | PrismaSeT (PrismaSeT G) duct |
| Type of front plate | Cut-out |
| type of front plate | Cut-out |
| Installed device |
EasyPact: fixed CVS400 without earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS630 without earth leakage protection - control: toggle - vertical installation |
| Poles description |
1 x 3P: mounting plate support: CVS400 vertical installation 1 x 4P: mounting plate support: CVS400 vertical installation 1 x 3P: mounting plate support: CVS630 vertical installation 1 x 4P: mounting plate support: CVS630 vertical installation |
| Operating position | Vertical |
| Enclosure/cubicle description |
Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm |
|---|---|
| Connection position | Direct connection |
| Number of vertical modules [50 mm] | 8 |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 400 mm |
| Width | 300 mm |
| Product weight | 0.86 kg |
| Quantity per set | Set of 1 |
| functional unit |
300 mm PrismaSeT G floor-standing duct EasyPact CVS400 without fixed toggle vertical 3P 1 direct with long terminal shield 12 300 mm PrismaSeT G wall-mounted duct EasyPact CVS400 without fixed toggle vertical 3P 1 direct with long terminal shield 12 300 mm PrismaSeT G floor-standing duct EasyPact CVS400 without fixed toggle vertical 4P 1 direct with long terminal shield 12 300 mm PrismaSeT G wall-mounted duct EasyPact CVS400 without fixed toggle vertical 4P 1 direct with long terminal shield 12 300 mm PrismaSeT G floor-standing duct EasyPact CVS630 without fixed toggle vertical 3P 1 direct with long terminal shield 12 300 mm PrismaSeT G wall-mounted duct EasyPact CVS630 without fixed toggle vertical 3P 1 direct with long terminal shield 12 300 mm PrismaSeT G floor-standing duct EasyPact CVS630 without fixed toggle vertical 4P 1 direct with long terminal shield 12 300 mm PrismaSeT G wall-mounted duct EasyPact CVS630 without fixed toggle vertical 4P 1 direct with long terminal shield 12 |
| IP degree of protection | IP30 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 26.5 cm |
| Package 1 Length | 41.5 cm |
| Package 1 Weight | 859.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.0 cm |
| Package 2 Width | 27.5 cm |
| Package 2 Length | 43.0 cm |
| Package 2 Weight | 8.898 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 63.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 171.0 kg |
-
PrismaSeT G LVS03280
