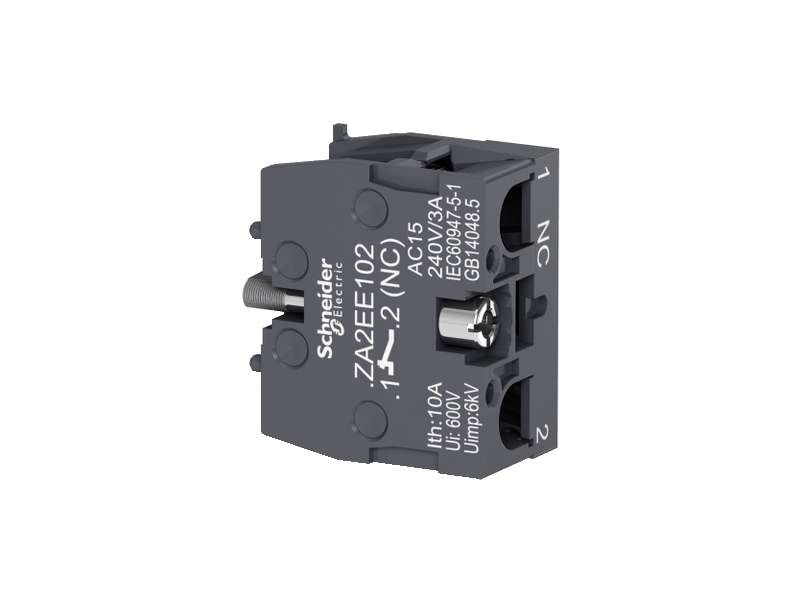

Schneider Electric Pojedinačni kontaktni blok za glavu Ø22, 1 NC;ZA2EE102

Contact block, Easy Harmony XA2, single contact, for head 22mm, faston terminal, 1NC...

Brand: Schneider Electric
Product Code: ZA2EE102
Availability: Check availability

VAT-exclusive price: 170,00

VAT-inclusive price: 204,00

Qnt:

Description
Specification

Contact block, Easy Harmony XA2, single contact, for head 22mm, faston terminal, 1NC

Main
range of product	Easy Harmony XA2
product or component type	Contact block
device short name	ZA2E

Complementary
contacts type and composition	1 NC
contact operation	Slow-break
contact block type	Single
contacts usage	Standard contacts
positive opening	Without
mechanical durability	1500000 cycles
connections - terminals	, <= 2 x 1.5 mm² conforming to EN 60947-1 , <= 1 x 2.5 mm² conforming to EN 60947-1 , >= 1 x 0.5 mm² conforming to EN 60947-1 Faston terminals, connection size: 6.3 mm conforming to EN 60947-1
tightening torque	0.8 N.m
contacts material	Silver alloy (Ag/Ni)
short-circuit protection	10 A fuse type gL conforming to IEC 60269-1
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-1
[Ie] rated operational current	2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1
electrical durability	500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1

Environment
protective treatment	TC
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…55 °C
IP degree of protection	IP20 conforming to IEC 60529
standards	EN/IEC 60947-1 IEC 60529 EN/IEC 60947-5-4 EN/IEC 60947-5-1
product certifications	CCC CE

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	19.0 g
Package 1 Height	3.0 cm
Package 1 width	11.0 cm
Package 1 Length	16.0 cm
Unit Type of Package 2	S02
Number of Units in Package 2	200
Package 2 Weight	3.438 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	P06
Number of Units in Package 3	3200
Package 3 Weight	66.196 kg
Package 3 Height	77.0 cm
Package 3 width	80.0 cm
Package 3 Length	60.0 cm
