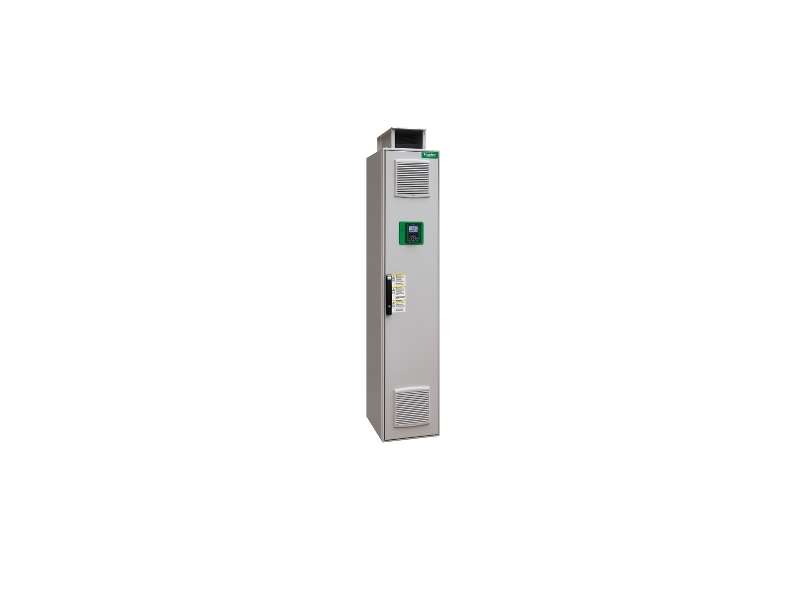

Schneider Electric Pogon sa promenljivom brzinom, Altivar Process ATV600, ATV650, 315 kV, 400 ... 480 V, podno stajanje;ATV650C31N4F
Variable speed drive, Altivar Process ATV600, ATV650, 315 kW, 400...480 V, floor standing...
Price on request
Variable speed drive, Altivar Process ATV600, ATV650, 315 kW, 400...480 V, floor standing
| range of product | Altivar Process ATV600 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Process and utilities |
| device short name | ATV650 |
| variant | With disconnect switch |
| product destination |
Synchronous motors Synchronous motors |
| EMC filter | Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| IP degree of protection |
IP54 conforming to IEC 60529 IP54 conforming to IEC 61800-5-1 |
| [Us] rated supply voltage | 380...440 V |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...440 V - 15...10 % |
| motor power kW |
315 kW (normal duty) 250 kW (heavy duty) |
| line current |
488 A at 400 V (heavy duty) 391 A at 380 V (normal duty) 566 A at 380 V (heavy duty) 453 A at 400 V (normal duty) |
| prospective line Isc | 50 kA |
| apparent power |
372 kVA at 440 V (normal duty) 298 kVA at 440 V (heavy duty) |
| continuous output current |
590 A at 2.5 kHz for normal duty 477 A at 2.5 kHz for heavy duty |
| maximum transient current |
649 A during 60 s (normal duty) 716 A during 60 s (heavy duty) |
| asynchronous motor control profile |
Constant torque standard Optimized torque mode Variable torque standard |
| synchronous motor control profile |
Synchronous reluctance motor Permanent magnet motor |
| speed drive output frequency | 0.1…500 Hz |
| nominal switching frequency | 2.5 kHz |
| switching frequency |
2...8 kHz adjustable 2.5...8 kHz with derating factor |
| safety function | STO (safe torque off) SIL 3 |
| discrete input logic | 16 preset speeds |
| communication port protocol |
Modbus serial Modbus TCP Modbus serial |
| option card |
Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1 |
| mounting mode | Floor-standing |
|---|---|
| network number of phases | 3 phases |
| discrete output number | 0 |
| discrete output type |
Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA |
| output voltage | <= power supply voltage |
| permissible temporary current boost |
1.5 x In during 60 s (heavy duty) 1.1 x In during 60 s (normal duty) |
| motor slip compensation |
Adjustable Automatic whatever the load Not available in permanent magnet motor law Adjustable |
| acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s |
| physical interface |
Ethernet 2-wire RS 485 |
| braking to standstill | By DC injection |
| protection type |
Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor |
| transmission rate |
10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| frequency resolution |
Analog input: 0.012/50 Hz Display unit: 0.1 Hz |
| transmission frame | RTU |
| electrical connection |
Line side: M12 bar - 3 cables 3 x 185 mm² maximum per phase (normal duty) Line side: M12 bar - 4 cables 3 x 120 mm² maximum per phase (normal duty) Motor: M12 bar - 3 cables 3 x 185 mm² maximum per phase (normal duty) Motor: M12 bar - 4 cables 3 x 120 mm² maximum per phase (normal duty) Line side: M12 bar - 3 cables 3 x 185 mm² maximum per phase (heavy duty) Line side: M12 bar - 4 cables 3 x 120 mm² maximum per phase (heavy duty) Motor: M12 bar - 3 cables 3 x 185 mm² maximum per phase (heavy duty) Line side: M12 bar - 2 cables 3 x 185 mm² minimum per phase (normal duty) Line side: M12 bar - 3 cables 3 x 95 mm² minimum per phase (normal duty) Motor: M12 bar - 2 cables 3 x 150 mm² minimum per phase (normal duty) Motor: M12 bar - 3 cables 3 x 95 mm² minimum per phase (normal duty) Line side: M12 bar - 2 cables 3 x 120 mm² minimum per phase (heavy duty) Line side: M12 bar - 3 cables 3 x 70 mm² minimum per phase (heavy duty) Motor: M12 bar - 2 cables 3 x 120 mm² minimum per phase (heavy duty) Motor: M12 bar - 3 cables 3 x 120 mm² minimum per phase (heavy duty) Motor: M12 bar - 4 cables 3 x 185 mm² maximum per phase (heavy duty) Control: removable screw terminals 0.5...1.5 mm² |
| connector type |
RJ45 (on the remote graphic terminal) for Modbus serial RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
| data format | 8 bits, configurable odd, even or no parity |
| type of polarization | No impedance |
| exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| number of addresses | 1…247 for Modbus serial |
| method of access | Slave Modbus TCP |
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
| local signalling |
3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic |
| width | 600 mm |
| height | 2350 mm |
| depth | 669 mm |
| net weight | 420 kg |
| analogue input number | 3 |
| analogue input type |
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| discrete input number | 8 |
| discrete input type | DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
| input compatibility |
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| discrete input logic |
Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1) |
| analogue output number | 2 |
| analogue output type |
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA |
| sampling duration |
5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output 2 ms +/- 0.5 ms (DI1...DI4) - discrete input |
| accuracy |
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| linearity error |
AO1, AO2: +/- 0.2 % for analog output AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
| relay output number | 3 |
| relay output type |
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| refresh time | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| isolation | Between power and control terminals |
| maximum output frequency | 500 kHz |
| maximum input current | 566.0 A |
| Variable speed drive application selection |
Food and beverage processing Other application Mining mineral and metal Fan Mining mineral and metal Pump Oil and gas Fan Water and waste water Other application Building - HVAC Screw compressor Food and beverage processing Pump Food and beverage processing Fan Food and beverage processing Atomization Oil and gas Electro submersible pump (ESP) Oil and gas Water injection pump Oil and gas Jet fuel pump Oil and gas Compressor for refinery Water and waste water Centrifuge pump Water and waste water Positive displacement pump Water and waste water Electro submersible pump (ESP) Water and waste water Screw pump Water and waste water Lobe compressor Water and waste water Screw compressor Water and waste water Compressor centrifugal Water and waste water Fan Water and waste water Conveyor Water and waste water Mixer Building - HVAC Compressor centrifugal |
| Motor power range AC-3 |
250…500 kW at 480…500 V 3 phases 250…500 kW at 380…440 V 3 phases |
| quantity per set | 1 |
| enclosure mounting | Floor-standing |
| insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
|---|---|
| noise level |
