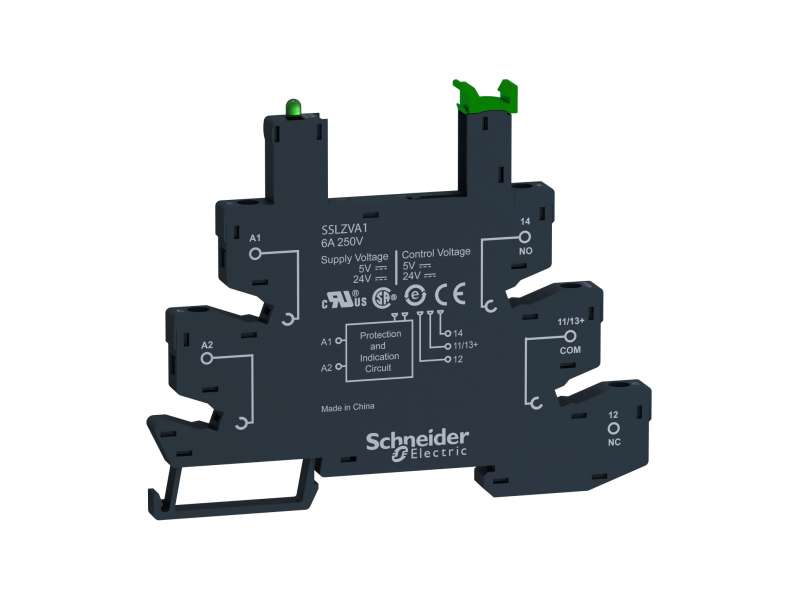

Schneider Electric Podnožje SSL - 6 A - 5/24 V DC- opružno - za relej SSL ; SSLZRA1
Socket, 6 A, relay type SSL, spring terminals, 5/24 V DC...
VAT-exclusive price: 920,00 |
VAT-inclusive price: 1.104,00 |
Socket, 6 A, relay type SSL, spring terminals, 5/24 V DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| device short name |
SSLZ
|
|
| sale per indivisible quantity |
10
|
| contact terminal arrangement |
Separate
|
|
|---|---|---|
| product compatibility |
Solid state relay SSL with NO contact at 24 V DC
Solid state relay SSL with NO contact at 5 V DC |
|
| shape of pin |
Flat
|
|
| [Ith] conventional free air thermal current |
6 A
|
|
| [Ith] conventional free air thermal current |
6 A
|
|
| [Ue] rated operational voltage |
< 250 V DC
|
|
| connections - terminals |
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
|
| clamping force |
10…40 N
|
|
| fixing mode |
Clip-on (35 mm DIN rail)
|
|
| switching voltage |
5 V DC
24 V DC |
|
| local signalling |
LED (green)input status:
|
|
| width |
6.2 mm
|
|
| height |
101 mm
|
|
| depth |
78.6 mm
|
|
| net weight |
0.0285 kg
|
| flame retardance |
V0 conforming to UL 94
|
|
|---|---|---|
| standards |
IEC 61984
|
|
| product certifications |
UL 508
REACH CSA C22-2 No 14 RoHS |
|
| marking |
CE
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| IP degree of protection |
IP20
|
|
| dielectric strength |
2500 V
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
31 g
|
|
| Package 1 Height |
0.6 cm
|
|
| Package 1 width |
7.9 cm
|
|
| Package 1 Length |
9.6 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
1.31 kg
|
|
| Package 2 Height |
7.1 cm
|
|
| Package 2 width |
8.5 cm
|
|
| Package 2 Length |
10.7 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
300
|
|
| Package 3 Weight |
9.3 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile |
-
Zelio Relays SSLZRA1
