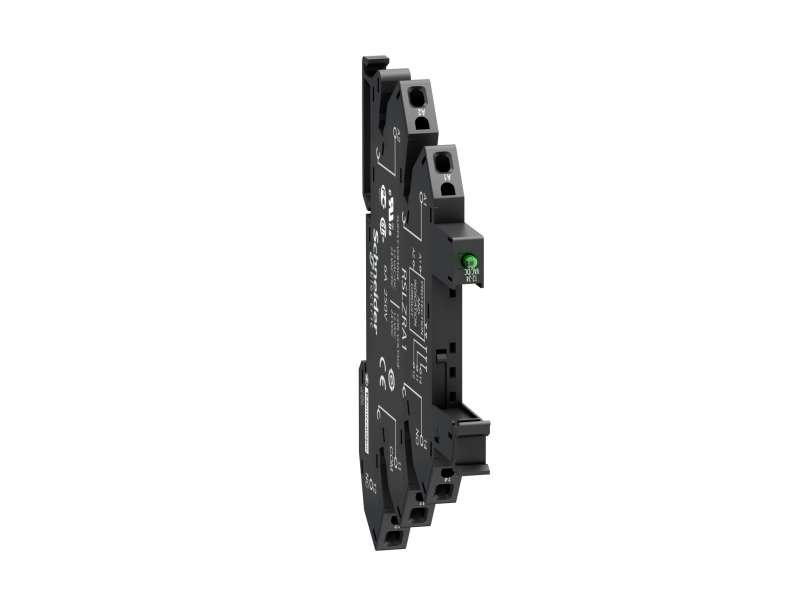

Schneider Electric Podnožje sa opružnim priključcima opremljeno sa LED-om i zaštitnim kolom,12-24 V ; RSLZRA1
Spring socket equipped with LED and protection circuit, 12...24 V AC/DC...
VAT-exclusive price: 1.359,00 |
VAT-inclusive price: 1.630,80 |
Spring socket equipped with LED and protection circuit, 12...24 V AC/DC
| range of product |
Zelio Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Separate
|
|
| product compatibility |
Plug-in relay RSL with 1 C/O contact at 12 V DC
Plug-in relay RSL with 1 C/O contact at 24 V DC |
|
| shape of pin |
Flat
|
|
| device short name |
RSLZ
|
|
| device presentation |
Basic element
|
|
| sale per indivisible quantity |
10
|
|
| switching voltage |
12 V AC/DC
24 V AC/DC |
| [Ith] conventional free air thermal current |
6 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
< 300 V AC
|
|
| clamping force |
10…40 N
|
|
| fixing mode |
Plastic compression spring (35 mm symmetrical DIN rail)
|
|
| marking |
CE
|
|
| CAD overall width |
6.2 mm
|
|
| CAD overall height |
78.6 mm
|
|
| CAD overall depth |
101 mm
|
|
| net weight |
0.023 kg
|
|
| rated operational voltage limits |
21.6...28.8 V
11.4...14.4 V |
|
| group of product |
RSL_SPRING_TERS_12-24
|
|
| compatibility code |
RSLZ
|
| connections - terminals |
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
|
|---|---|---|
| standards |
UL 508
IEC 61984 |
|
| product certifications |
GOST
CSA |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
2500 V
|
| Package 1 Weight |
0.028 kg
|
|
|---|---|---|
| Package 1 Height |
0.700 dm
|
|
| Package 1 width |
0.840 dm
|
|
| Package 1 Length |
1.200 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Zelio Relays RSLZRA1
