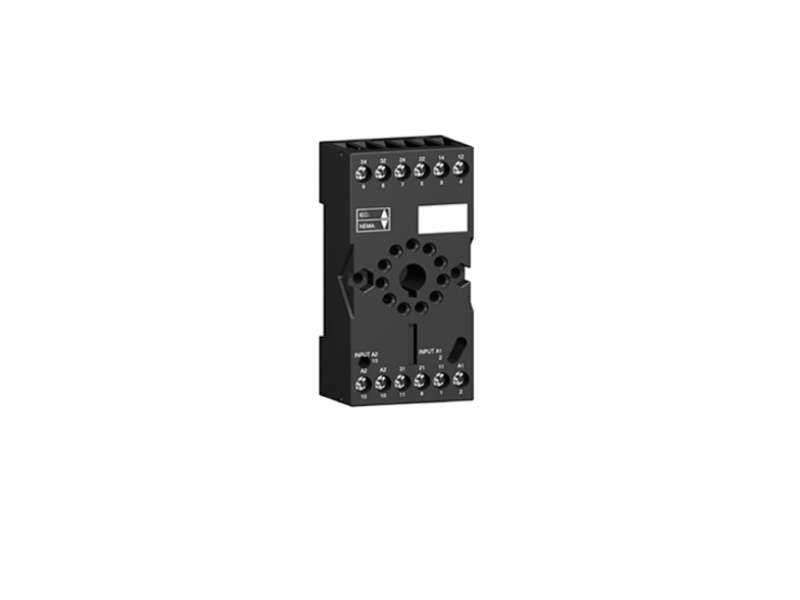

Schneider Electric Podnožje RUZ - mešoviti kontakti - 10A - < 250V -za releje RXM2.., RUMC3.. ; RUZC3M
Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC...
VAT-exclusive price: 859,00 |
VAT-inclusive price: 1.030,80 |
Socket, mixed contact, 10 A, relay type RUMC3, screw connector, 250 V AC
| range of product |
Zelio Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Mixed
|
|
| product compatibility |
Plug-in relay RUM with 3 C/O contact
Plug-in relay RE48A with 2 C/O contact |
|
| shape of pin |
Cylindrical
|
|
| device short name |
RUZ
|
|
| sale per indivisible quantity |
10
|
| [Ith] conventional free air thermal current |
10 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
< 250 V
|
|
| tightening torque |
< 1 N.m for M3.5 screw(s)
|
|
| fixing mode |
By screw (panel)
Clip-on (35 mm symmetrical DIN rail) |
|
| marking |
CE
|
|
| width |
38 mm
|
|
| net weight |
0.054 kg
|
| connections - terminals |
Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
|
|---|---|---|
| standards |
IEC 61984
|
|
| product certifications |
CSA
UL |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
2500 V
|
| Package 1 Weight |
56.000 g
|
|
|---|---|---|
| Package 1 Height |
0.800 dm
|
|
| Package 1 width |
0.800 dm
|
|
| Package 1 Length |
1.370 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
