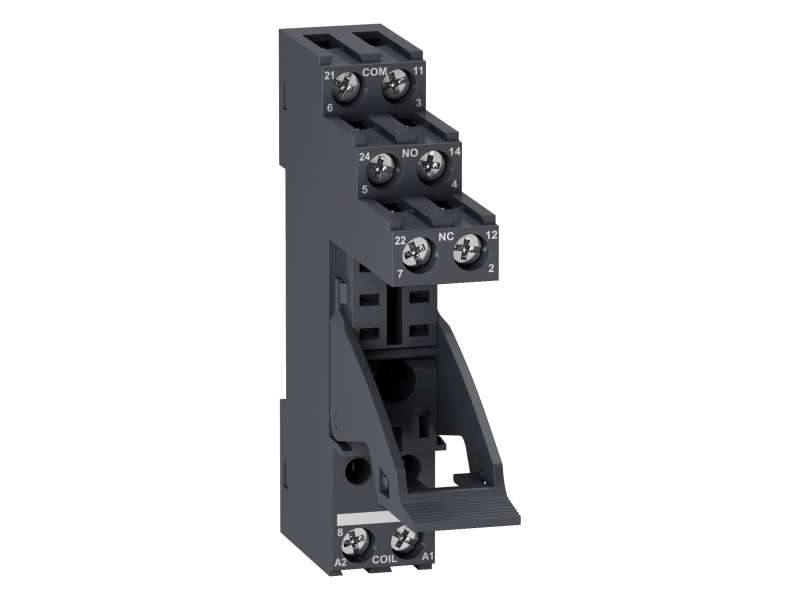

Schneider Electric Podnožje RGZ - odvojeni kontakti -5 A - 250 V - vijčani priključak; RGZE1S48M
Socket, separate contact, 5 A, relay type RXG2, screw connector, 250 V AC...
VAT-exclusive price: 579,00 |
VAT-inclusive price: 694,80 |
Socket, separate contact, 5 A, relay type RXG2, screw connector, 250 V AC
| range of product |
Zelio Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Separate
|
| product compatibility |
Plug-in relay RXG with 2 C/O contact
|
|
|---|---|---|
| [Ui] rated insulation voltage |
250 V
|
|
| [Uimp] rated impulse withstand voltage |
6 kV
|
|
| [In] rated current |
5 A
|
|
| [Ue] rated operational voltage |
250 V conforming to IEC
300 V conforming to UL |
|
| connections - terminals |
Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Screw terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
|
| screw type |
M3
|
| ambient air temperature for storage |
-40…85 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-40…70 °C
|
|
| relative humidity |
10…85 %
|
|
| standards |
CSA C22.2 No 14
IEC 61984 UL 508 |
|
| product certifications |
RoHS
EAC CE CSA China RoHS UL REACH |
|
| IP degree of protection |
IP20
|
|
| overvoltage category |
III
|
|
| pollution degree |
3
|
| Package 1 Weight |
42.000 g
|
|
|---|---|---|
| Package 1 Height |
62.000 mm
|
|
| Package 1 width |
15.800 mm
|
|
| Package 1 Length |
77.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure |
-
Zelio Relays RGZE1S48M
