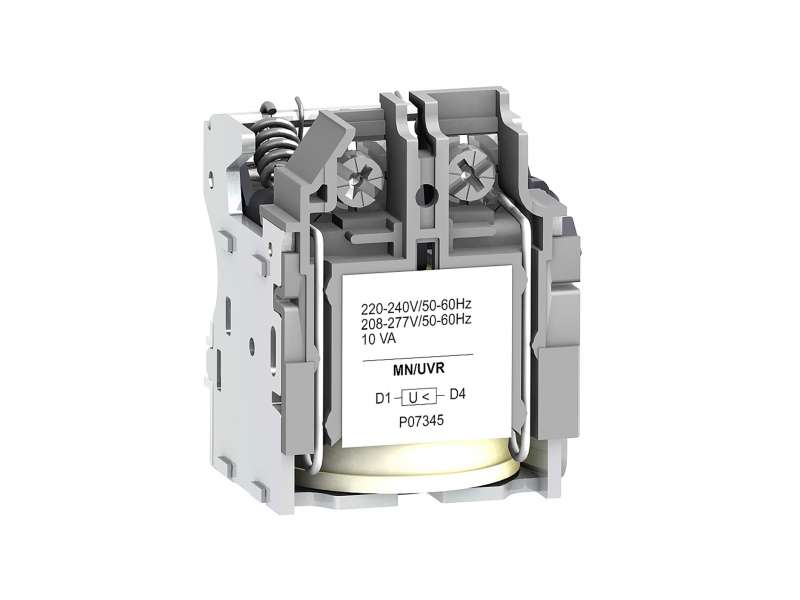

Schneider Electric Podnaponski okidač MN - 208..277V 60Hz, 220..240V 50/60Hz;LV429407
MN undervoltage release, ComPact NSX, rated voltage 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz...
VAT-exclusive price: 6.710,00 |
VAT-inclusive price: 8.052,00 |
MN undervoltage release, ComPact NSX, rated voltage 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz
| device short name |
MX
|
|
|---|---|---|
| product or component type |
Voltage release
|
|
| device application |
Control
|
|
| range compatibility |
ComPact NSX
EasyPact CVS PowerPact Multistandard ComPact NSX DC |
|
| voltage release type |
Undervoltage release
|
|
| [Uc] control circuit voltage |
208...277 V AC 60 Hz
220...240 V AC 50/60 Hz |
| threshold tripping voltage |
0.35...0.7 x Un opening
0.85 x Un closing |
|
|---|---|---|
| supply holding power |
5 VA
|
|
| supply inrush power |
10 VA
|
|
| mounting mode |
Fixed
|
|
| response time |
50 ms
|
|
| auxiliary connection terminal |
Screw terminal 0…1.5 mm²
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
127 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
6.2 cm
|
|
| Package 1 Length |
8 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
1.356 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
9 cm
|
|
| Package 2 Length |
23 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
60
|
|
| Package 3 Weight |
8.62 kg
|
|
| Package 3 Height |
30 cm
|
|
| Package 3 width |
30 cm
|
|
| Package 3 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
ComPact NSX LV429407
