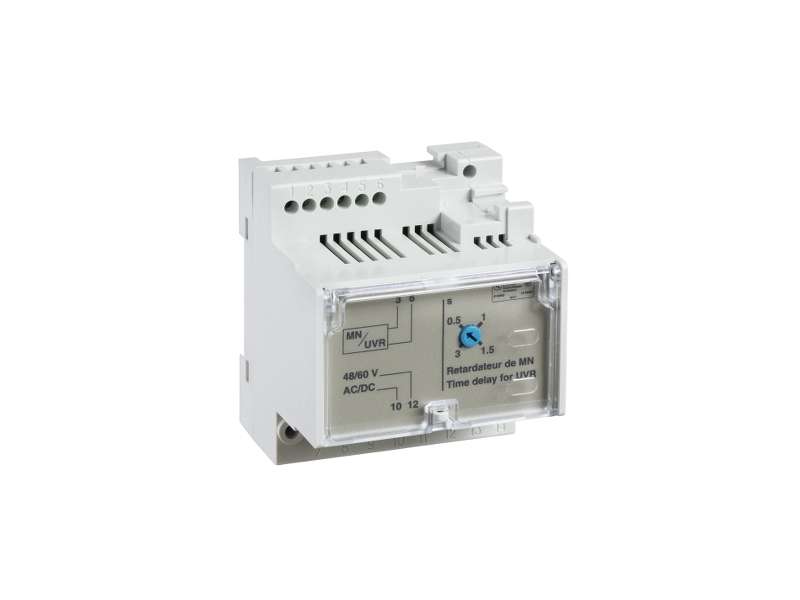

Schneider Electric Podesivi vremenski relej za naponski okidač MN - 380/480 VAC;33683
adjustable time delay relay for MN voltage release, 380/480 VDC, 380/480 VAC 50/60 Hz...
VAT-exclusive price: 69.414,00 |
VAT-inclusive price: 83.296,80 |
adjustable time delay relay for MN voltage release, 380/480 VDC, 380/480 VAC 50/60 Hz
| device short name | MN delay unit |
|---|---|
| product or component type | Time delay relay |
| device application | Control |
| range compatibility |
MasterPact NT MasterPact NW ComPact NS630b...1600 ComPact NS1600b...3200 MasterPact NW UL 489 MasterPact NT UL 489 MasterPact NW DC |
| voltage release type | Undervoltage release |
| [Uc] control circuit voltage |
380...480 V AC 50/60 Hz 380...480 V DC |
| impulse duration | 200 ms |
|---|---|
| time delay range | 0.5...3 s |
| threshold tripping voltage |
0.35...0.7 Un open 0.85 Un close |
| supply holding power | 4.5 VA |
| supply inrush power | 200 VA |
| mounting mode | External mounting |
| response time |
0.5 s 1 s 1.5 s 3 s |
| accessory / separate part category |
Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 179.0 g |
| Package 1 Height | 8.5 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 3.66 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| device short name | MN delay unit |
|---|---|
| product or component type | Time delay relay |
| device application | Control |
| range compatibility |
MasterPact NT MasterPact NW ComPact NS630b...1600 ComPact NS1600b...3200 MasterPact NW UL 489 MasterPact NT UL 489 MasterPact NW DC |
| voltage release type | Undervoltage release |
| [Uc] control circuit voltage |
380...480 V AC 50/60 Hz 380...480 V DC |
| impulse duration | 200 ms |
|---|---|
| time delay range | 0.5...3 s |
| threshold tripping voltage |
0.35...0.7 Un open 0.85 Un close |
| supply holding power | 4.5 VA |
| supply inrush power | 200 VA |
| mounting mode | External mounting |
| response time |
0.5 s 1 s 1.5 s 3 s |
| accessory / separate part category |
Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 179.0 g |
| Package 1 Height | 8.5 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Weight | 3.66 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
