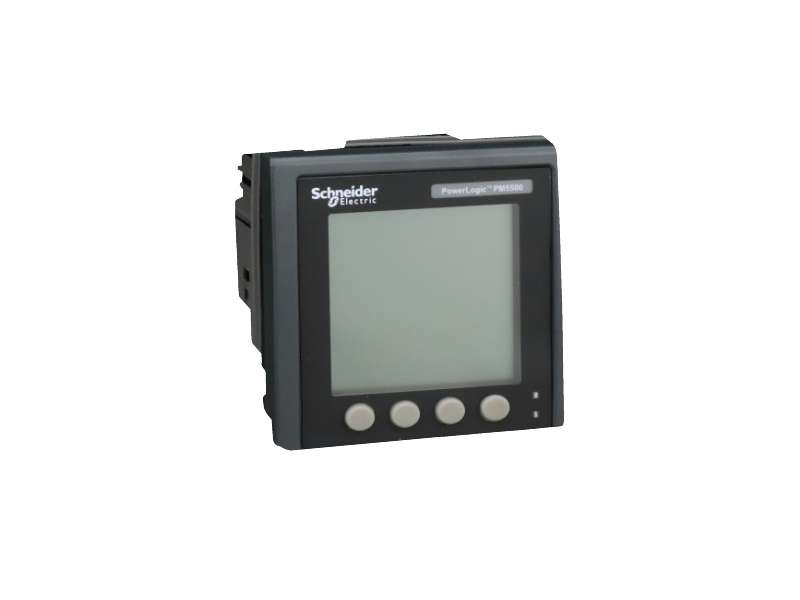

Schneider Electric PM5560 multimetar sa 1Mod2Eth - do 63. harm.- 1,1M 4DI/2DO 52 alarma - ugradni;METSEPM5560
PM5560 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms...
VAT-exclusive price: 219.905,00 |
VAT-inclusive price: 263.886,00 |
PM5560 Meter, 2 ethernet, up to 63th H, 1,1M 4DI/2DO 52 alarms
| range | PowerLogic |
|---|---|
| product name | PowerLogic PM5000 |
| device short name | PM5560 |
| product or component type | Power meter |
| power quality analysis | Up to the 63rd harmonic |
|---|---|
| metering type |
Measured neutral current Calculated ground current |
| device application |
Gateway WAGES metering Power monitoring Multi-tariff |
| type of measurement |
Current Voltage Frequency Power factor Energy Active and reactive power |
| supply voltage |
125...250 V DC 100...480 V AC 45...65 Hz |
| network frequency |
60 Hz 50 Hz |
| [In] rated current |
1 A 5 A |
| type of network |
3P + N 3P 1P + N |
| maximum power consumption in VA | 10 VA at 480 V |
| ride-through time |
35 ms 120 V AC typical 129 ms 230 V AC typical |
| display type | Backlit LCD |
| display resolution | 128 x 128 pixels |
| sampling rate | 128 samples/cycle |
| measurement current | 5…10000 mA |
| analogue input type |
Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| measurement voltage |
20…400 V AC 45...65 Hz between phase and neutral 20…690 V AC 45...65 Hz between phases |
| frequency measurement range | 45…65 Hz |
| number of inputs | 4 digital |
| measurement accuracy |
Apparent power +/- 0.5 % Frequency +/- 0.05 % Active energy +/- 0.2 % Reactive energy +/- 1 % Active power +/- 0.2 % Voltage +/- 0.1 % Power factor +/- 0.005 Current +/- 0.1 % |
| accuracy class | Class 0.2S active energy conforming to IEC 62053-22 |
| number of outputs | 2 digital |
| information displayed | Tariff (8) |
| communication port protocol |
Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V JBUS Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V Ethernet Modbus TCP/IP daisy chain BACnet IP |
| communication port support |
RS485 Ethernet |
| communication gateway | Ethernet/serial |
| data recording |
Event logs Maintenance logs Min/max of instantaneous values Data logs Alarm logs Time stamping |
| memory capacity | 1.1 MB |
| web services |
Alarm notification by e-mail Diagnostic via predefined web pages Web server Real time viewing of data |
| Ethernet service |
SNTP client SNMP-Traps |
| connections - terminals |
Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Current transformer: screw terminal block6 RS485 link: screw terminal block4 Digital input: screw terminal block8 Digital output: screw terminal block4 Ethernet network: RJ45 connector2 |
| mounting mode | Flush-mounted |
| mounting support | Framework |
| standards |
EN 50470-3 IEC 61557-12 IEC 62053-22 IEC 62053-24 IEC 60529 EN 50470-1 UL 61010-1 ANSI C12.20 |
| product certifications |
CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 BTL |
| width | 96 mm |
| depth | 72 mm |
| height | 96 mm |
| net weight | 450 g |
| electromagnetic compatibility |
Limits for harmonic current emissions class A conforming to IEC 61000-3-2 Conducted RF disturbances level 3 conforming to IEC 61000-4-6 Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to EN 55022 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Surge immunity test level 4 conforming to IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|---|---|
| IP degree of protection |
IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 |
| relative humidity | 5…95 % at 50 °C |
| pollution degree | 2 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 661.0 g |
| Package 1 Height | 12.91 cm |
| Package 1 width | 13.271 cm |
| Package 1 Length | 13.277 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 8.49 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
