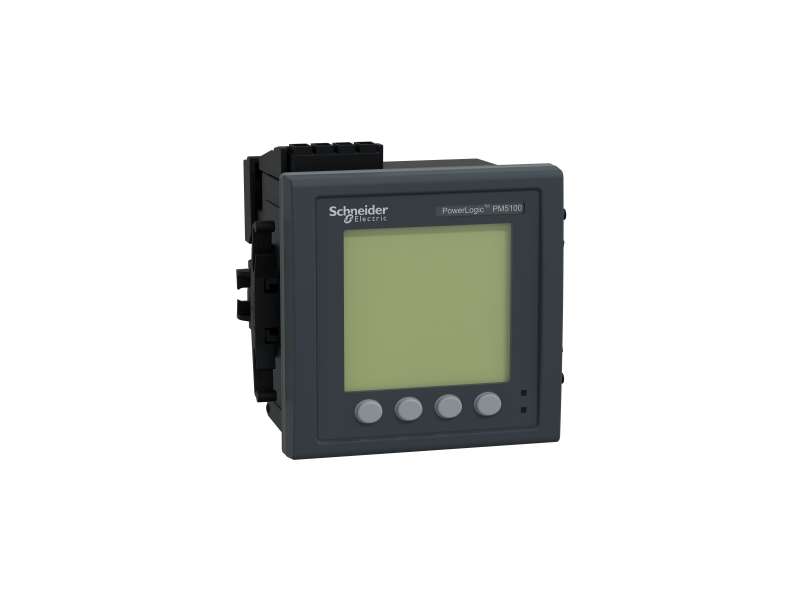

Schneider Electric PM5100 multimetar bez Modbus-s - do 15. harmonika - 1DO 33 alarma - ugradni
PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms...
VAT-exclusive price: 61.251,00 |
VAT-inclusive price: 73.501,20 |
PM5100 Meter, without communication, up to 15th H, 1DO 33 alarms
| range | PowerLogic |
|---|---|
| product name | PowerLogic PM5000 |
| device short name | PM5100 |
| product or component type | Power meter |
| power quality analysis | Up to the 15th harmonic |
|---|---|
| device application | Power monitoring |
| type of measurement |
Current Voltage Frequency Power factor Energy Active and reactive power |
| supply voltage |
100...415 V AC 45...65 Hz 125...250 V DC |
| network frequency |
60 Hz 50 Hz |
| [In] rated current |
5 A 1 A |
| type of network |
3P + N 1P + N 3P |
| maximum power consumption in VA | 10 VA at 415 V |
| ride-through time |
80 ms 120 V AC typical 100 ms 230 V AC typical 100 ms 415 V AC typical |
| display type | Backlit LCD |
| display resolution | 128 x 128 pixels |
| sampling rate | 64 samples/cycle |
| measurement current | 10…9000 mA |
| analogue input type |
Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm) |
| measurement voltage |
35…690 V AC 45...65 Hz between phases 20…400 V AC 45...65 Hz between phase and neutral |
| frequency measurement range | 45…65 Hz |
| number of inputs | 0 |
| measurement accuracy |
Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Frequency +/- 0.05 % Power factor +/- 0.005 Current +/- 0.5 % Voltage +/- 0.5 % |
| accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| number of outputs | 1 digital |
| communication port protocol | - |
| communication port support | - |
| data recording |
Min/max of instantaneous values Time stamping |
| connections - terminals |
Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Current transformer: screw terminal block6 Input/output circuit: screw terminal block6 RS485 link: screw terminal block4 |
| mounting mode | Flush-mounted |
| mounting support | Framework |
| standards |
EN 50470-1 IEC 62053-22 UL 61010-1 IEC 62053-24 IEC 61557-12 EN 50470-3 IEC 60529 |
| product certifications |
CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 |
| width | 96 mm |
| depth | 72 mm |
| height | 96 mm |
| net weight | 380 g |
| electromagnetic compatibility |
Limits for harmonic current emissions class A conforming to IEC 61000-3-2 Electrostatic discharge level 4 conforming to IEC 61000-4-2 Conducted RF disturbances level 3 conforming to IEC 61000-4-6 Magnetic field at power frequency level 4 conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| IP degree of protection |
IP52 front: conforming to IEC 60529 IP30 body: conforming to IEC 60529 |
| relative humidity | 5…95 % at 50 °C |
| pollution degree | 2 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 550.0 g |
| Package 1 Height | 11 cm |
| Package 1 width | 12.6 cm |
| Package 1 Length | 12.6 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 6.54 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Weight | 61.44 kg |
| Package 3 Height | 50 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 60 cm |
