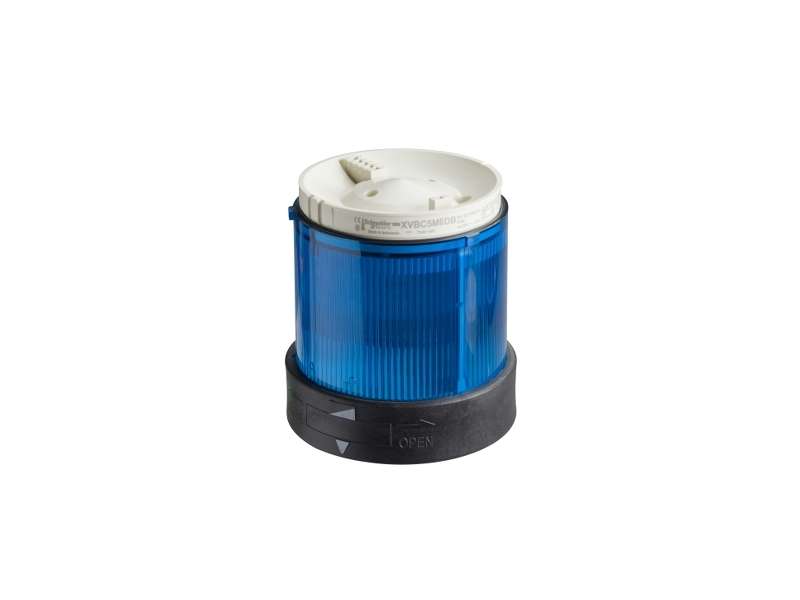

Schneider Electric Plavi trepćući blok 48VDC 10W + opcije;XVBC4B6
Harmony XVB, Illuminated unit for modular tower lights, plastic, blue, Ø70, flashing, for bulb or LED, 24 V AC, 24...48 V DC...
VAT-exclusive price: 7.039,00 |
VAT-inclusive price: 8.446,80 |
Harmony XVB, Illuminated unit for modular tower lights, plastic, blue, Ø70, flashing, for bulb or LED, 24 V AC, 24...48 V DC
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Illuminated unit |
| signalling type | Flashing |
| mounting diameter | 70 mm |
| component name | XVBC |
| material | Polycarbonate |
| light source | Bulb not included, blue |
| bulb type |
Incandescent with BA 15d base Protected LED Incandescent |
| [Us] rated supply voltage |
24 V AC 24...48 V DC |
| assembly style | Customer assembly, up to 5 units |
|---|---|
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| net weight | 0.16 kg |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation |
-25…50 °C: incandescent -25…50 °C: LED |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 150.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.3 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Weight | 6.2 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Illuminated unit |
| signalling type | Flashing |
| mounting diameter | 70 mm |
| component name | XVBC |
| material | Polycarbonate |
| light source | Bulb not included, blue |
| bulb type |
Incandescent with BA 15d base Protected LED Incandescent |
| [Us] rated supply voltage |
24 V AC 24...48 V DC |
| assembly style | Customer assembly, up to 5 units |
|---|---|
| maximum power dissipation in W | 7 W |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| net weight | 0.16 kg |
| pollution degree | 2 |
|---|---|
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation |
-25…50 °C: incandescent -25…50 °C: LED |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 150.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.3 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Weight | 6.2 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
