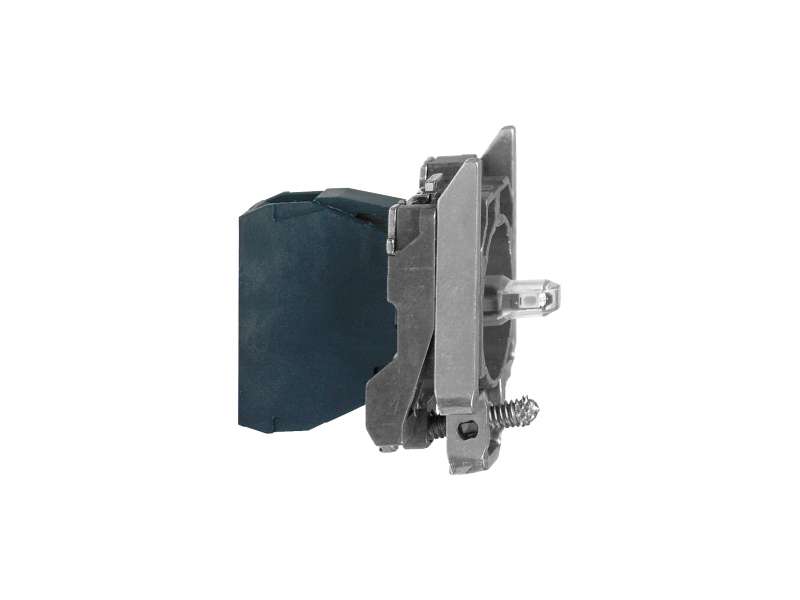

Schneider Electric Plavi svetlosni blok sa montažnim ramom - integrisan LED 24V;ZB4BVB6
Light block with body/fixing collar, metal, blue, integral LED, 24 V AC/DC...
VAT-exclusive price: 1.079,00 |
VAT-inclusive price: 1.294,80 |
Light block with body/fixing collar, metal, blue, integral LED, 24 V AC/DC
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Complete body/light block assembly
|
|
| device short name |
ZB4
|
|
| fixing collar material |
Zamak
|
|
| sale per indivisible quantity |
1
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end
Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
|
| light source |
Protected LED
|
|
| bulb base |
Integral LED
|
|
| light source colour |
Blue
|
|
| [Us] rated supply voltage |
24 V AC/DC at 50/60 Hz
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
47 mm
|
|
| CAD overall depth |
37 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.054 kg
|
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
EN 60947-1 6 kV
|
|
| signalling type |
Steady
|
|
| supply voltage limits |
19.2…30 V DC
21.6…26.4 V AC |
|
| current consumption |
18 mA
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| standards |
EN/IEC 60947-1
CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 UL 508 EN/IEC 60947-5-5 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
CSA
GL DNV BV LROS (Lloyds register of shipping) RINA UL listed |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-2-6
8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
54 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
5.6 cm
|
-
Harmony XB4 ZB4BVB6
