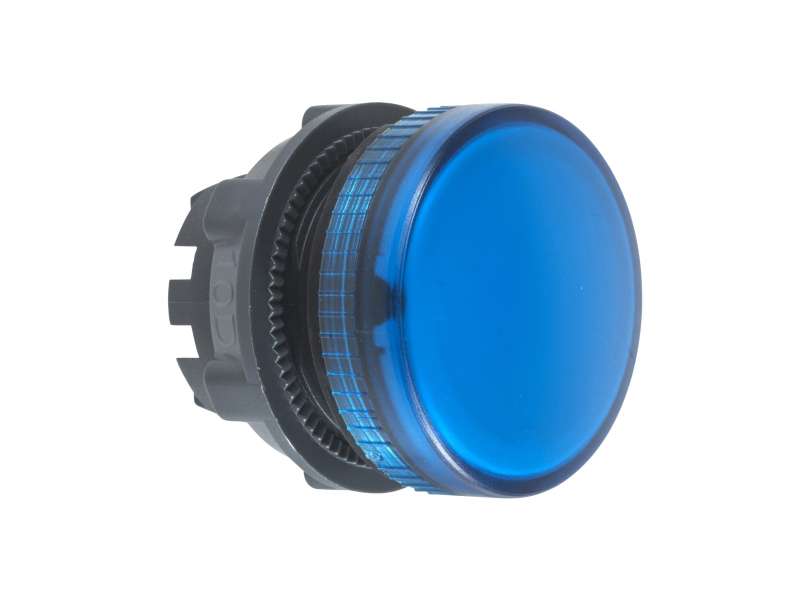

Schneider Electric Plava glava signalne lampice Ø22 ravna sočiva za integrisan LED;ZB5AV063
Pilot light head, plastic, blue, Ø22, plain lens for integral LED...
VAT-exclusive price: 360,00 |
VAT-inclusive price: 432,00 |
Pilot light head, plastic, blue, Ø22, plain lens for integral LED
-
Main range of product Harmony XB5product or component type Head for pilot lightproduct compatibility Integral LEDdevice short name ZB5bezel material Dark grey plasticmounting diameter 22 mmhead type Standardsale per indivisible quantity 1shape of signaling unit head Roundcap/operator or lens colour Blueoperator additional information With plain lensComplementary CAD overall width 29 mmCAD overall height 29 mmCAD overall depth 31 mmnet weight 0.017 kgstation name XALD 1...5 cut-outs
XALK 2...5 cut-outselectrical composition code P1 in front mounting with integral LED
P2 in front mounting with integral LED and transformer
PF1 in front mounting with integral LED
PR1 in rear mounting with integral LEDdevice presentation Basic elementEnvironment protective treatment THambient air temperature for storage -40…70 °Cambient air temperature for operation -40…70 °Covervoltage category Class II conforming to IEC 60536IP degree of protection IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653NEMA degree of protection NEMA 13
NEMA 4Xresistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 mIK degree of protection IK05 conforming to IEC 50102standards UL 508
EN/IEC 60947-5-5
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
JIS C8201-1vibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27Packing Units Unit Type of Package 1 PCENumber of Units in Package 1 1Package 1 Weight 15 gPackage 1 Height 3.4 cmPackage 1 width 4.5 cmPackage 1 Length 5.4 cmUnit Type of Package 2 BB1Number of Units in Package 2 5Package 2 Weight 77 gPackage 2 Height 3.4 cmPackage 2 width 4.5 cmPackage 2 Length 26.5 cmUnit Type of Package 3 S03
-
Harmony XB5 ZB5AV063
