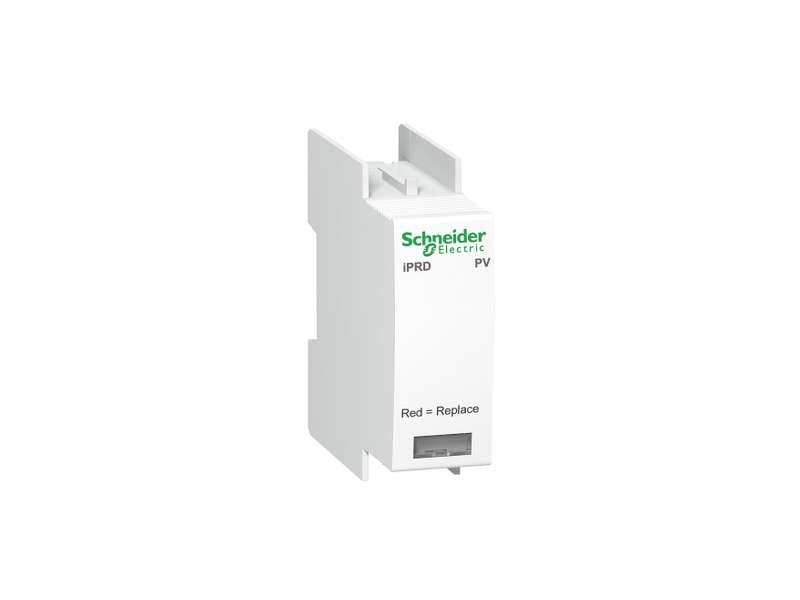

Schneider Electric Patrona C40-800 PV za odvodnik prenapona iPRD-DC;A9L40172

cartridge C40-800 PV for surge arrester iPRD-DC...

Brand: Schneider Electric
Product Code: A9L40172
Availability: Check availability

Price on request

Description
Specification

cartridge C40-800 PV for surge arrester iPRD-DC

Main
product or component type	Cartridge
device short name	C40-800 PV
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 2
surge arrester technology	MOV
nominal discharge current	15 kA
maximum discharge current	40 kA
[Uc] maximum continuous operating voltage	800 V DC
maximum [Up] voltage protection level	<1.4 kV type 2
[Uoc] open circuit voltage	666 V
local signalling	White/red flag
mounting mode	Plug-in
mounting support	Into SPD module
9 mm pitches	2
height	57 mm
width	18 mm
depth	56 mm
net weight	0.51 kg
colour	White (RAL 9003)
material	PBT (polybutylene terephthalate)
response time	< 25 ns

Environment
standards	EN 61643-11 IEC 61643-11: 2011
quality labels	CE
IP degree of protection	IP20 front face:
relative humidity	5…90 %
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	75.0 g
Package 1 Height	2.3 cm
Package 1 width	7.5 cm
Package 1 Length	9.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	108
Package 2 Weight	7.56 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	P06
Number of Units in Package 3	1296
Package 3 Weight	102.72 kg
Package 3 Height	60.0 cm
Package 3 width	57.2 cm
Package 3 Length	76.6 cm
