Schneider Electric Panel osetljiv na dodir sa tastaturom - 640 x 480 piksela VGA -10.4'' - TFT LCD; HMIGK5310
Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD...
VAT-exclusive price: 237.676,00 |
VAT-inclusive price: 285.211,20 |

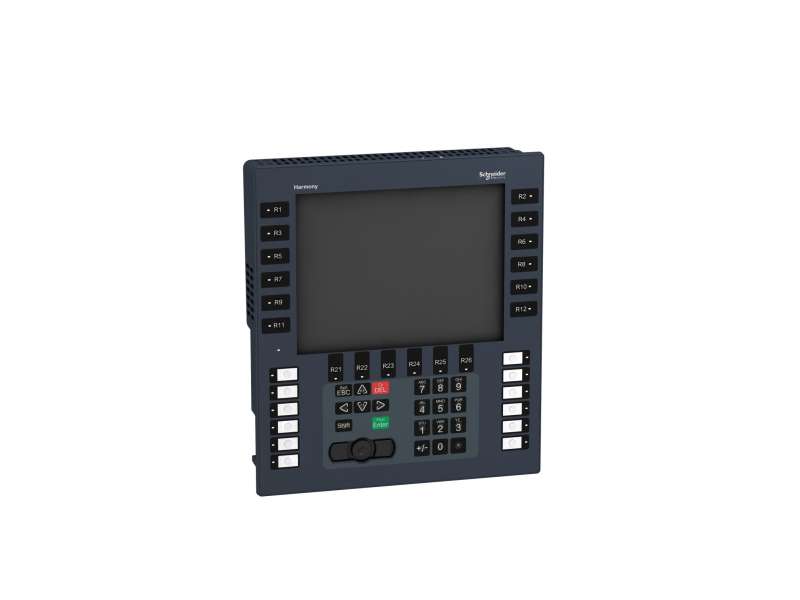

Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD
| range of product |
Harmony GK
|
|
|---|---|---|
| product or component type |
Touchscreen panel with keypad
|
|
| display colour |
65536 colours
|
|
| display size |
10.4 inch
|
|
| supply |
External source
|
|
| operating system |
Harmony
|
|
| processor name |
CPU RISC
|
| display type |
Backlit colour TFT LCD
|
|
|---|---|---|
| display resolution |
640 x 480 pixels VGA
|
|
| touch sensitive zone |
1024 x 1024
|
|
| touch panel |
Analogue
|
|
| backlight lifespan |
50000 hours
|
|
| brightness |
16 levels via touch panel
|
|
| character font |
Japanese (ANK, Kanji)
Korean ASCII (European characters) Taiwanese (traditional Chinese) Chinese (simplified Chinese) |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
19.2…28.8 V
|
|
| inrush current |
30 A
|
|
| power consumption in W |
11.4 W
|
|
| number of dynamic function keys symb |
18 with LED
|
|
| number of static function keys |
12 with LED and labels
|
|
| number of SERVICE keys |
8
|
|
| number of alphanumeric keys |
12
|
|
| local signalling |
1 LED (green or orange)normal operation or backlighting faulty:
|
|
| number of pages |
Limited by internal memory capacity
|
|
| software type |
Configuration software
|
|
| software designation |
Vijeo Designer
|
|
| processor frequency |
333 MHz
|
|
| memory description |
512 kB SRAM back up of data with lithium battery back-up
128 MB flash EPROM application memory |
|
| downloadable protocols |
Telemecanique Modicon FIPWAY
Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
|
| realtime clock |
Built-in
|
|
| memory type |
Up to 32 GB SD card RAM
Up to 32 GB SDHC card RAM |
|
| integrated connection type |
<= 187.5 kbit/s RJ45, RS485 COM2 serial link for Siemens MPI (187.5 kbits/s)
USB 2.0 type A master port for Modicon M340 terminal port communication <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link removable screw terminal block power supply RJ45 Ethernet TCP/IP USB 2.0 type mini B |
|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| mounting mode |
Flush mounting
|
|
| fixing mode |
By 12 spring clips
|
|
| front material |
Aluminium alloy
|
|
| enclosure material |
PPT
|
|
| marking |
CE
|
|
| width |
296 mm
|
|
| height |
332 mm
|
|
| depth |
76 mm
|
|
| cut-out dimensions |
285 (+/- 0.4) x 309 (+/- 0.4) mm
|
|
| net weight |
3.3 kg
|
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| standards |
EN 61000-6-2
EN 61000-6-4 CSA C22.2 No 213 UL 61010-2-201 ANSI/ISA 12.12.01 EN 61131-2 |
|
| product certifications |
CULus
EAC UL Class 1 Division 2 T5 KC UL Class 1 Division 2 T4A RCM CSA Class 1 Division 2 T4A CSA Class 1 Division 2 T5 |
|
| ambient air temperature for operation |
0…55 °C
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| relative humidity |
10…90 % without condensation
|
|
| operating altitude |
< 2000 m
|
|
| IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| vibration resistance |
1 gn conforming to IEC 60068-2-6 (f = 9…150 Hz)
3.5 mm conforming to IEC 60068-2-6 (f = 5…9 Hz) |
|
| electromagnetic compatibility |
Resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2
Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 Resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4 |
| Package 1 Weight |
2.990 kg
|
|
|---|---|---|
| Package 1 Height |
76.000 mm
|
|
| Package 1 width |
196.000 mm
|
|
| Package 1 Length |
332.000 mm
|
| REACh free of SVHC |
Yes
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Magelis GK HMIGK5310
