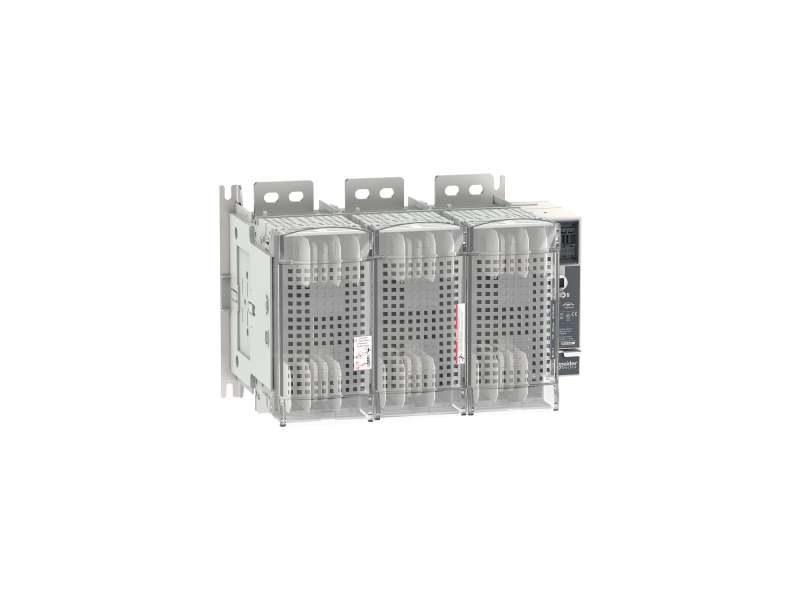

Schneider Electric Osigurač rastavljača prekidača, FuPacT GSD1250, 1250 A, 3 pola, tip osigurača DIN NH4, prednja i desna bočna kontrola;LV481473
Switch disconnector fuse, FuPacT GSD1250, 1250 A, 3 poles, fuse type DIN NH4, front and right side control...
VAT-exclusive price: 215.392,00 |
VAT-inclusive price: 258.470,40 |
Switch disconnector fuse, FuPacT GSD1250, 1250 A, 3 poles, fuse type DIN NH4, front and right side control
| range | FuPacT |
|---|---|
| product name | FuPacT GS |
| device short name | GSD1250 |
| product or component type | Switch-disconnector-fuse |
| device application | Protection |
| poles description | 3P |
| protected poles description | 3t |
| contacts type and composition | 3 NO |
| [Ith] conventional free air thermal current | 1250 A (at 35 °C) |
| [Ie] rated operational current |
1250 A at 220/240 V AC-22B 1250 A at 380/415 V AC-22B 1250 A at 660/690 V AC-22B 1250 A at 220/240 V AC-23B 1250 A at 380/415 V AC-23B |
| fuse type | DIN |
| fuse size | NH4 |
| network type | AC |
| network frequency | 50/60 Hz |
| type of operating handle |
External frontal External right side |
|---|---|
| mounting support | Plate |
| [Ui] rated insulation voltage | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 12 kV |
| rated operational power in W |
750 kW at 380/400 V 900 kW at 660/690 V |
| breaking capacity | 100 kA at 415 V (AC-23B) |
| mechanical durability | 5000 cycles |
| electrical durability |
100 cycles AC-22B 100 cycles AC-23B |
| connections - terminals |
Power circuit: bare cable connectors80 mm² Power circuit: lugs-ring terminals 4 cable(s) 185 mm² |
| tightening torque | Power circuit: 44 N.m |
| standards | IEC 60947-3 |
|---|---|
| product certifications |
CE CCC |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| ambient air temperature for operation | -20…70 °C |
| ambient air temperature for storage | -40…80 °C |
| fire resistance |
850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1 |
| height | 300 mm |
| width | 442 mm |
| depth | 289 mm |
| net weight | 25 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 40.5 kg |
| Package 1 Height | 52.0 cm |
| Package 1 width | 60.0 cm |
| Package 1 Length | 80.0 cm |
