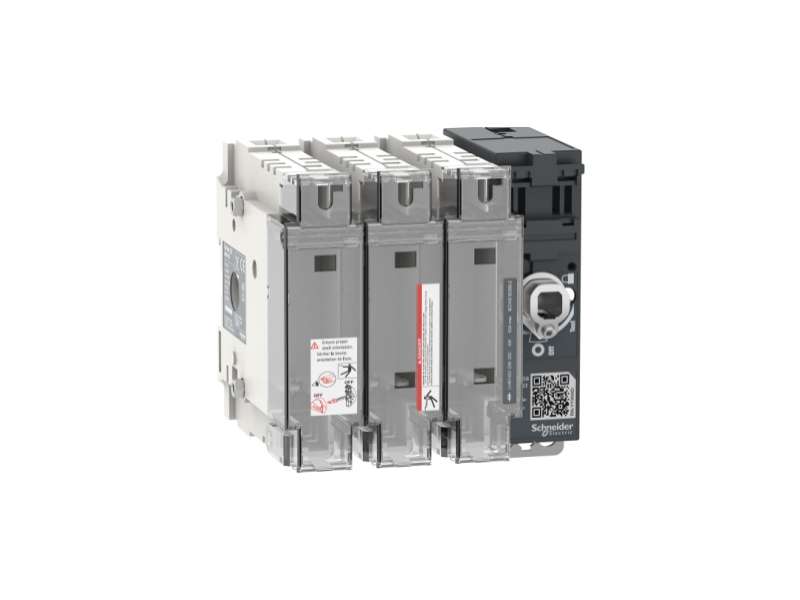

Schneider Electric Osigurač prekidačkog rastavljača, FuPacT GSD160, 160 A, 3 pola, tip osigurača DIN NH00, prednja i desna bočna kontrola;LV481423

Switch disconnector fuse, FuPacT GSD160, 160 A, 3 poles, fuse type DIN NH00, front and right side control...

Brand: Schneider Electric
Product Code: LV481423
Availability: Check availability

VAT-exclusive price: 27.837,00

VAT-inclusive price: 33.404,40

Qnt:

Description
Specification

Switch disconnector fuse, FuPacT GSD160, 160 A, 3 poles, fuse type DIN NH00, front and right side control

Main
range	FuPacT
product name	FuPacT GS
device short name	GSD160
product or component type	Switch-disconnector-fuse
device application	Protection
poles description	3P
protected poles description	3t
contacts type and composition	3 NO
[Ith] conventional free air thermal current	160 A (at 35 °C)
[Ie] rated operational current	160 A at 220/240 V AC-22A 160 A at 380/415 V AC-22A 160 A at 660/690 V AC-22A 160 A at 220/240 V AC-23A 160 A at 380/415 V AC-23A
fuse type	DIN
fuse size	NH00
network type	AC
network frequency	50/60 Hz

Complementary
type of operating handle	Direct frontal External frontal External right side
mounting support	Plate
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
rated operational power in W	80 kW at 380/400 V 110 kW at 660/690 V
breaking capacity	50 kA at 415 V (AC-23A)
mechanical durability	10000 cycles
electrical durability	1000 cycles AC-22A 1000 cycles AC-23A
connections - terminals	Power circuit: bare cable connectors20 mm² Power circuit: lugs-ring terminals50…95 mm²
tightening torque	Power circuit: 12 N.m

Environment
standards	IEC 60947-3
product certifications	CE CCC
IP degree of protection	IP20 conforming to IEC 60529 (with terminal cover)
ambient air temperature for operation	-20…70 °C
ambient air temperature for storage	-40…80 °C
fire resistance	850 °C fuse cover conforming to IEC 60695-2-1 960 °C body conforming to IEC 60695-2-1
height	162 mm
width	148 mm
depth	116 mm
net weight	1.8 kg

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.84 kg
Package 1 Height	15.5 cm
Package 1 width	17.0 cm
Package 1 Length	21.0 cm
Unit Type of Package 2	S06
Number of Units in Package 2	20
Package 2 Weight	48.5 kg
Package 2 Height	73.5 cm
Package 2 width	60 cm
Package 2 Length	80 cm
