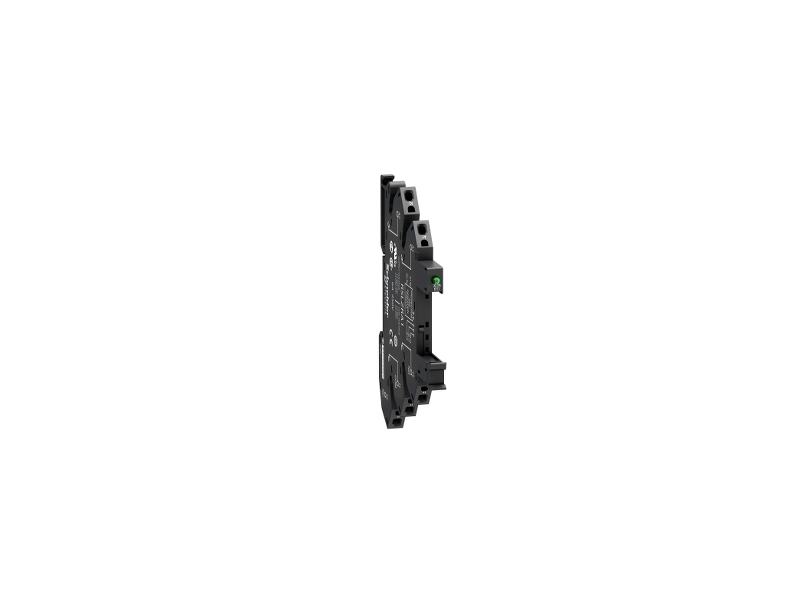

Schneider Electric Opružno podnožje opremljeno sa LED lampicom i zaštitnim kolom, 230 V ; RSLZRA4
spring socket equipped with LED and protection circuit, 230 V...
VAT-exclusive price: 1.359,00 |
VAT-inclusive price: 1.630,80 |
spring socket equipped with LED and protection circuit, 230 V
| range of product |
Zelio Relay
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Separate
|
|
| product compatibility |
Plug-in relay RSL with 1 C/O contact at 60 V DC
|
|
| shape of pin |
Flat
|
|
| device short name |
RSLZ
|
|
| device presentation |
Basic element
|
|
| sale per indivisible quantity |
10
|
|
| switching voltage |
230 V AC/DC
|
| [Ith] conventional free air thermal current |
6 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
< 300 V AC
|
|
| clamping force |
10…40 N
|
|
| fixing mode |
Plastic compression spring (35 mm symmetrical DIN rail)
|
|
| marking |
CE
|
|
| CAD overall width |
6.2 mm
|
|
| CAD overall height |
78.6 mm
|
|
| CAD overall depth |
101 mm
|
|
| net weight |
0.023 kg
|
|
| rated operational voltage limits |
184...264.5 V
|
|
| group of product |
RSL_SPRING_TERS_230
|
|
| compatibility code |
RSLZ
|
| connections - terminals |
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
|
|---|---|---|
| standards |
IEC 61984
UL 508 |
|
| product certifications |
GOST
CSA |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
2500 V
|
| Package 1 Weight |
0.028 kg
|
|---|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
