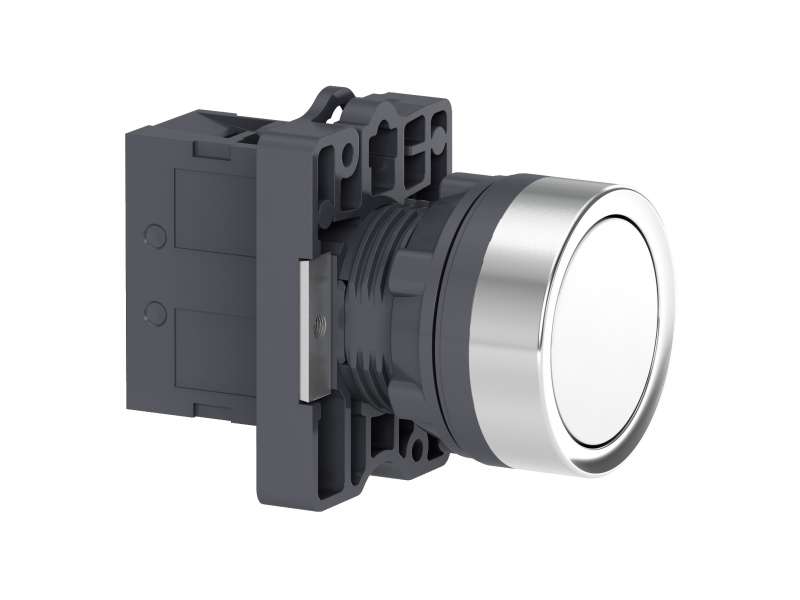

Schneider Electric Okrugli beli taster Ø 22 - flush spring return - 1NO;XA2EA11
Round white push-button Ø 22 - flush spring return - 1NO...
VAT-exclusive price: 333,00 |
VAT-inclusive price: 399,60 |
Round white push-button Ø 22 - flush spring return - 1NO
| range of product |
Easy Harmony XA2
|
|
|---|---|---|
| product or component type |
Complete push-button
|
|
| device short name |
XA2
|
|
| bezel material |
Plastic
|
|
| fixing collar material |
Plastic
|
| mounting diameter |
22 mm
|
|
|---|---|---|
| sale per indivisible quantity |
1
|
|
| protective treatment |
TC
|
|
| operating position |
Any position
|
|
| fixing center |
>= 30 x 40 mm (panel) - thickness: 1…5 mm
|
|
| fixing mode |
Fixing nut: 2…2.4 N.m
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
White flush
|
|
| contacts type and composition |
1 NO
|
|
| contact operation |
Slow-break
|
|
| mechanical durability |
1500000 cycles
|
|
| tightening torque |
0.8 N.m
|
|
| short-circuit protection |
10 A gL fuse conforming to IEC 60269-1
|
|
| [Ui] rated insulation voltage |
600 V conforming to IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-1 6 kV
|
|
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600
0.27 A at 250 V, DC-13, Q600 |
|
| electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-4
500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 |
|
| electrical reliability |
Λ < 10exp(-8) at 24 V
|
|
| width |
30 mm
|
|
| height |
42 mm
|
|
| depth |
54.7 mm
|
|
| net weight |
0.032 kg
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-25…55 °C
|
|
| overvoltage category |
Class I conforming to IEC 536
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK03 conforming to IEC 60529
|
|
| standards |
IEC 60947-5-1
IEC 60947-1 GB 14048.5 GB 14048.1 |
|
| product certifications |
CCC
CE |
|
| vibration resistance |
10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
| Package 1 Weight |
43.000 g
|
|
|---|---|---|
| Package 1 Height |
40.000 mm
|
|
| Package 1 width |
110.000 mm
|
|
| Package 1 Length |
160.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
|
-
Easy Harmony XA2E XA2EA11
