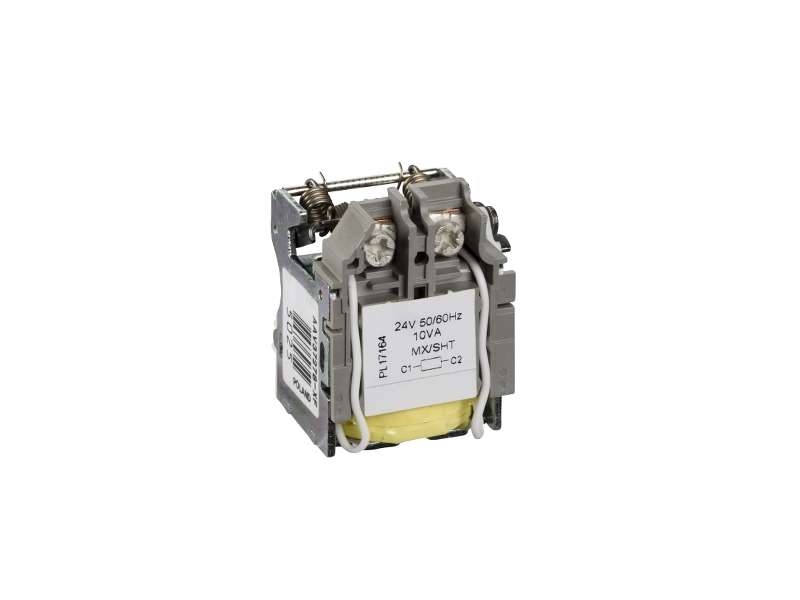

Schneider Electric Okidač za isključenje MX - 24 V - 50/60Hz;LV429384
MX shunt release, ComPacT NSX, rated voltage 24 VAC 50/60 Hz, screwless spring terminal connections...
VAT-exclusive price: 4.692,00 |
VAT-inclusive price: 5.630,40 |
MX shunt release, ComPacT NSX, rated voltage 24 VAC 50/60 Hz, screwless spring terminal connections
| device short name | MX |
|---|---|
| product or component type | Voltage release |
| device application | Control |
| range compatibility |
ComPacT NSX new generation ComPacT NSX DC new generation ComPact NSX ComPact NSX DC EasyPact CVS PowerPact Multistandard |
| voltage release type | Shunt trip release |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| control signal type |
Maintained Impulse |
|---|---|
| impulse duration | >= 20 ms |
| threshold tripping voltage | 0.7...1.1 x Un opening |
| supply inrush power | 10 VA |
| mounting mode | Fixed |
| response time | 50 ms |
| auxiliary connection terminal | Spring 0.5…1.5 mm² (AWG 20...AWG 16) |
| wire stripping length | 7 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 120.0 g |
| Package 1 Height | 4.5 cm |
| Package 1 width | 4.5 cm |
| Package 1 Length | 6.2 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 1.252 kg |
| Package 2 Height | 7.2 cm |
| Package 2 width | 10.5 cm |
| Package 2 Length | 23.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Weight | 7.894 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
| Warranty | 18 months |
|---|
