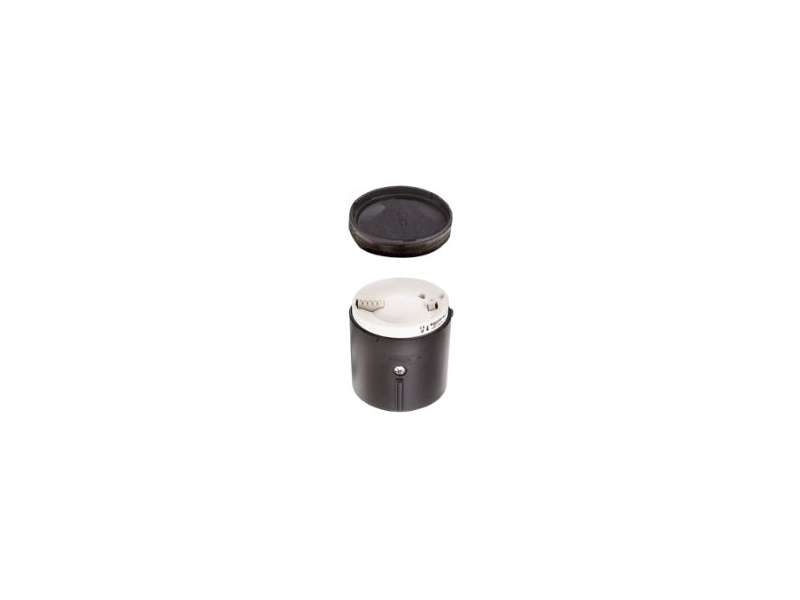

Schneider Electric Ø 70 mm baza + poklopac - sa AS-i vezu - crna, XVBC21A
Harmony XVB, Base unit with cover for modular tower lights, plastic, black, Ø70, side cable entry, AS-i connection...
VAT-exclusive price: 24.862,00 |
VAT-inclusive price: 29.834,40 |
Harmony XVB, Base unit with cover for modular tower lights, plastic, black, Ø70, side cable entry, AS-i connection
Main
Range of product Harmony XVB Universal
Product or component type Base unit with cover
Component name XVBC
Complementary
Range compatibility AS-Interface cabling system
Material Glass reinforced polyamide: base unit
Polycarbonate: cover unit
Mounting diameter 70 mm
[Us] rated supply voltage External: 19.2...30 V
AS-Interface line: 24...31.6 V
Current consumption 250 mA under load via AS-Interface line
30 mA under load external
30 mA no load
Actuator sensor interface
profile [AS-i]
S.7.F
Electrical connection 1 connector M12 for AS-Interface line
Cable entry Side entry
Assembly style Customer assembly, up to 5 units
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand
voltage
4 kV conforming to IEC 60947-1
Terminals description ISO n°1 (COM-5)PW
(COM-1)PW
(COM-4)PW
(COM-3)PW
(GND)GROUND
(COM-2)PW
Net weight 0.19 kg
Environment
Product certifications AS-Interface No 25701
CSA
Standards EN/IEC 60947-5-1
Protective treatment TC
Ambient air temperature for
storage
-20...70 °C
Ambient air temperature for
operation
-10...50 °C
Shock resistance 25 gn conforming to IEC 60068-2-27
Vibration resistance 5 gn conforming to IEC 60068-2-6
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP65 conforming to IEC 60529
IP65 conforming to NF C 20-010
NEMA degree of protection NEMA 4X conforming to UL 508 (indoor)
Range of product Harmony XVB Universal
Product or component type Base unit with cover
Component name XVBC
Complementary
Range compatibility AS-Interface cabling system
Material Glass reinforced polyamide: base unit
Polycarbonate: cover unit
Mounting diameter 70 mm
[Us] rated supply voltage External: 19.2...30 V
AS-Interface line: 24...31.6 V
Current consumption 250 mA under load via AS-Interface line
30 mA under load external
30 mA no load
Actuator sensor interface
profile [AS-i]
S.7.F
Electrical connection 1 connector M12 for AS-Interface line
Cable entry Side entry
Assembly style Customer assembly, up to 5 units
[Ui] rated insulation voltage 250 V conforming to IEC 60947-1
[Uimp] rated impulse withstand
voltage
4 kV conforming to IEC 60947-1
Terminals description ISO n°1 (COM-5)PW
(COM-1)PW
(COM-4)PW
(COM-3)PW
(GND)GROUND
(COM-2)PW
Net weight 0.19 kg
Environment
Product certifications AS-Interface No 25701
CSA
Standards EN/IEC 60947-5-1
Protective treatment TC
Ambient air temperature for
storage
-20...70 °C
Ambient air temperature for
operation
-10...50 °C
Shock resistance 25 gn conforming to IEC 60068-2-27
Vibration resistance 5 gn conforming to IEC 60068-2-6
Overvoltage category Class I conforming to IEC 60536
IP degree of protection IP65 conforming to IEC 60529
IP65 conforming to NF C 20-010
NEMA degree of protection NEMA 4X conforming to UL 508 (indoor)
-
Harmony XVB XVBC21A
