Schneider Electric Nosač vertikalnih sabirnica do 3200 A 400x400 mm

Vertical bar support up to 3200 A 400x400 mm...

Brand: Schneider Electric
Product Code: NSYBVS400
Availability: Check availability

VAT-exclusive price: 19.257,00

VAT-inclusive price: 23.108,40

Qnt:

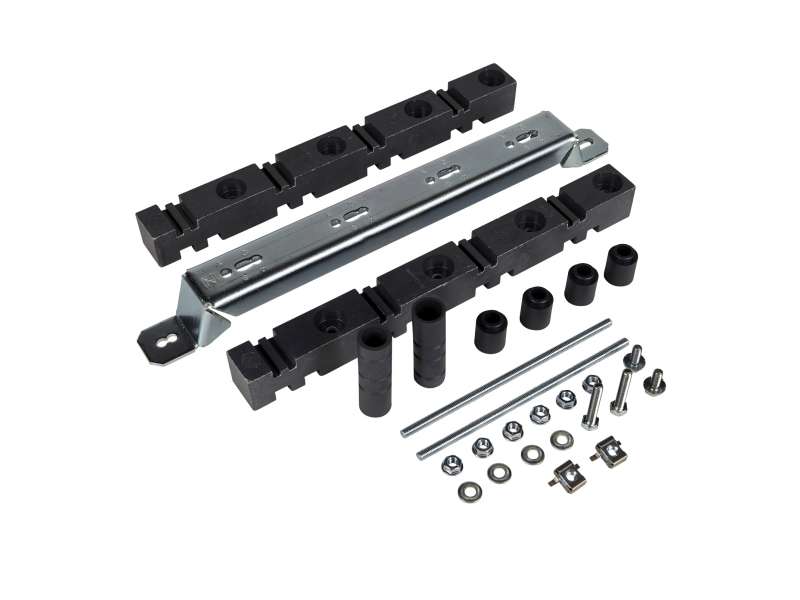

Vertical bar support up to 3200 A 400x400 mm

Main
range	Spacial
accessory / separate part category	Busbar accessory
product or component type	Busbar support
Anwendung	Prisma application Multi-purpose
enclosure nominal dimensions	-
mounting location	On structure of enclosure
busbar position	Vertical
range compatibility	Spacial SF

Complementary
device composition	Fixing elements 1 metal support 2 insulating bar support
quantity per set	Set of 1
material	Bar support: plastic Metal support: steel
fixing mode	By fixing element
width	350 mm fixing centers: 400 mm nominal:
depth	39 mm
[In] rated current	3200 A

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.42 kg
Package 1 Height	6 cm
Package 1 width	10 cm
Package 1 Length	38 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
