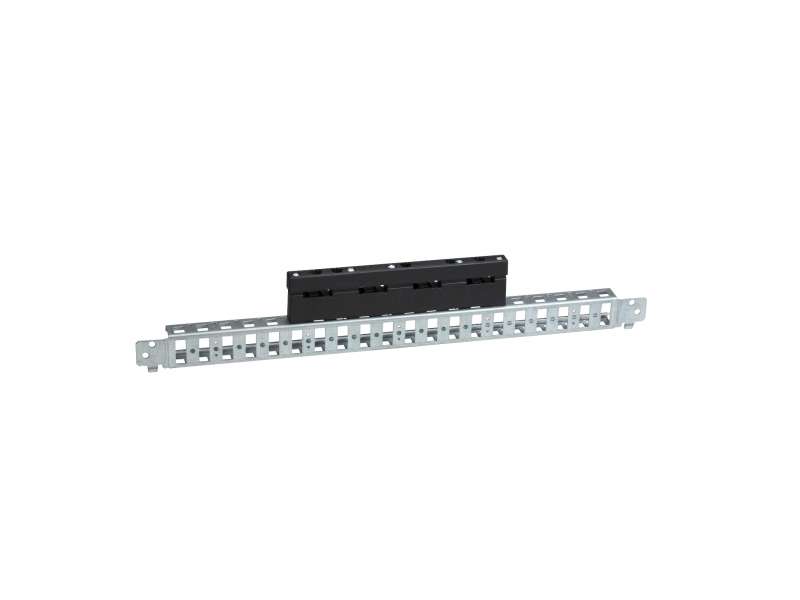

Schneider Electric Nosač sabirnice do 630 A 600 mm

Busbar support up to 630 A 600 mm...

Brand: Schneider Electric
Product Code: NSYBS600
Availability: Check availability

VAT-exclusive price: 13.366,00

VAT-inclusive price: 16.039,20

Qnt:

Busbar support up to 630 A 600 mm

Main
range	Spacial
accessory / separate part category	Busbar accessory
product or component type	Busbar support
Anwendung	Multi-purpose
enclosure nominal dimensions	-
mounting location	On structure of enclosure
busbar position	Vertical Horizontal
range compatibility	Spacial SF Spacial SFX Spacial SM

Complementary
device composition	Fixing elements 1 40 mm quick-fixing cross rail 1 bar support
quantity per set	Set of 1
material	Bar support: plastic Metal support: steel
fixing mode	By fixing element
height	47 mm
width	600 mm nominal: 510 mm fixing centers:
depth	40 mm
[In] rated current	630 A

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	840 g
Package 1 Height	5 cm
Package 1 width	6 cm
Package 1 Length	58 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
