Schneider Electric Nosač osigurača za 5 x 20 mm osigurače - 6.3 A - 250 V;XB5DT1S
Fuse carrier for 5 x 20 mm fuse - 6.3 A - 250 V...
VAT-exclusive price: 1.939,00 |
VAT-inclusive price: 2.326,80 |

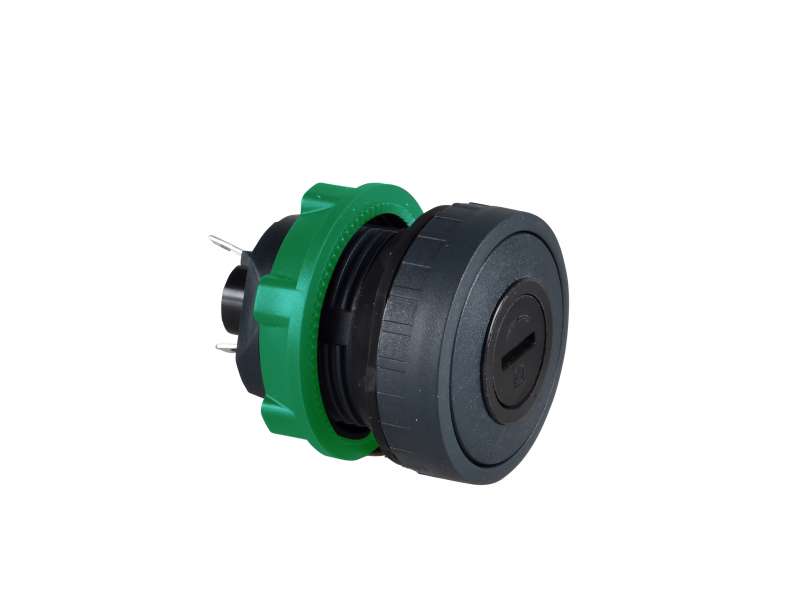

Fuse carrier for 5 x 20 mm fuse - 6.3 A - 250 V
| range of product |
Harmony XB5
|
|
|---|---|---|
| bezel material |
Dark grey plastic
|
|
| product or component type |
Fuse carrier
|
|
| mounting diameter |
22 mm
|
| product compatibility |
Fuse 5 x 20 mm, 6.3 A - 250 V
|
|
|---|---|---|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| device presentation |
Monolithic product
|
|
| net weight |
0.022 kg
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to EN 50102
IK03 conforming to IEC 50102 |
|
| standards |
EN 60947-5-1
JIS C8201-5-1 EN 60947-5-4 CSA C22.2 No 14 EN 60947-1 UL 508 JIS C8201-1 |
|
| product certifications |
DNV
UL listed LROS (Lloyds register of shipping) RINA BV GL CSA |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
21 g
|
|
| Package 1 Height |
4.4 cm
|
|
| Package 1 width |
3.4 cm
|
|
| Package 1 Length |
5.3 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Harmony XB5 XB5DT1S
