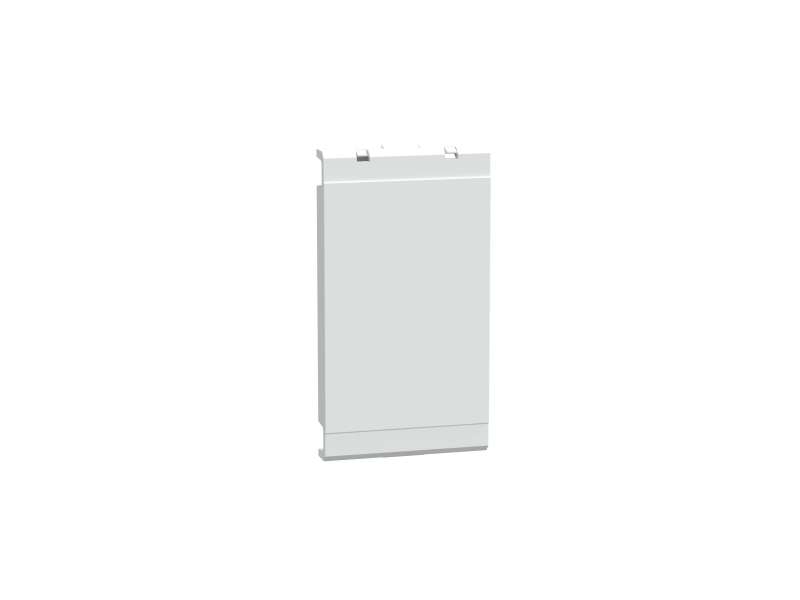

Schneider Electric Nosač 72x72 za merni uređaj/taster za prednju ploču 03904/zaslon 03928; LVS03900
Mounting plate, PrismaSeT P, for support 72x72 metering dev/push-button for front plate 03904/visor 03928...
VAT-exclusive price: 1.512,00 |
VAT-inclusive price: 1.814,40 |
Mounting plate, PrismaSeT P, for support 72x72 metering dev/push-button for front plate 03904/visor 03928
| Range | PrismaSeT |
|---|---|
| Range of product |
PrismaSeT P PrismaSeT G |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) cubicle |
| installation description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 400 mm depth 400 mm Cubicle - width 650 mm depth 400 mm Cubicle duct - width 300 mm depth 400 mm |
| Mounting plate description | Plain |
| Installed device | Human-switchboard interface: HSI |
| Number of vertical modules [50 mm] |
3 module(s): HSI in 600 mm Widefloor-standing enclosure 3 module(s): HSI in 600 mm Widewall-mounted enclosure 3 module(s): HSI in 650 mm Widecubicle 3 module(s): HSI in 300 mm Widecubicle duct 3 module(s): HSI in 400 mm Widecubicle |
| Standards | IEC 61439-2 |
| Product certifications | ASTA |
| Material | Plastic |
|---|---|
| Colour | White (RAL 9001) |
| Width | 81 mm |
| Height | 150 mm |
| Depth | 15 mm |
| Net weight | 0.04 kg |
| Functional unit |
600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 5 3 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 5 3 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 5 3 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface HSI 5 3 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 5 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.0 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 14.7 cm |
| Package 1 Weight | 41.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 8.494 kg |
