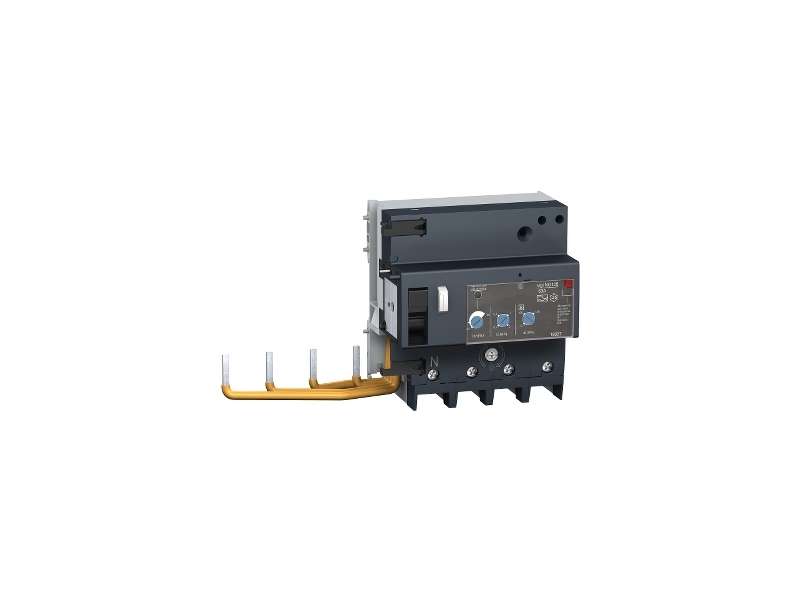

Schneider Electric NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 300mA;19056

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 300mA...

Brand: Schneider Electric
Product Code: 19056
Availability: Check availability

Price on request

Description
Specification

NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 300mA

Main
product or component type	Add-on residual current devices
device short name	Vigi NG125
poles description	4P
[In] rated current	125 A
network type	AC
earth-leakage sensitivity	300 mA 1000 mA 500 mA 3000 mA
earth-leakage protection time delay	Adjustable instantaneous/selective/delayed
earth-leakage protection class	Type A

Complementary
device location in system	Outgoer
network frequency	50/60 Hz
[Ue] rated operational voltage	440...500 V AC 50/60 Hz
residual current tripping technology	Voltage independent
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947-2
mounting support	35 mm symmetrical DIN rail
electrical connection to mcb	By screws
9 mm pitches	11
width	207 mm
net weight	0.8 kg
electrical durability	10000 cycles conforming to IEC 60947-2
connections - terminals	Tunnel type terminals 10…50 mm² flexible Tunnel type terminals 16…70 mm² rigid
wire stripping length	20 mm
tightening torque	6 N.m

Environment
standards	IEC 60947-2
IP degree of protection	IP40 conforming to IEC 60947-2
pollution degree	3 conforming to IEC 60947-2
electromagnetic compatibility	8/20 µs impulse withstand, 5000 A conforming to IEC 60947-2
tropicalisation	2 conforming to IEC 60068-1
relative humidity	95 % at 55 °C
operating altitude	2000 m

Packing Units
Unit Type of Package 1	PCE
Package 1 Length	26.0 cm
Number of Units in Package 1	1
Package 2 Width	30.0 cm
Package 2 Height	30.0 cm
Package 2 Weight	7.322 kg
Package 1 Width	14.0 cm
Package 1 Height	9.5 cm
Package 1 Weight	852.0 g
Number of Units in Package 2	8
Unit Type of Package 2	S03
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
