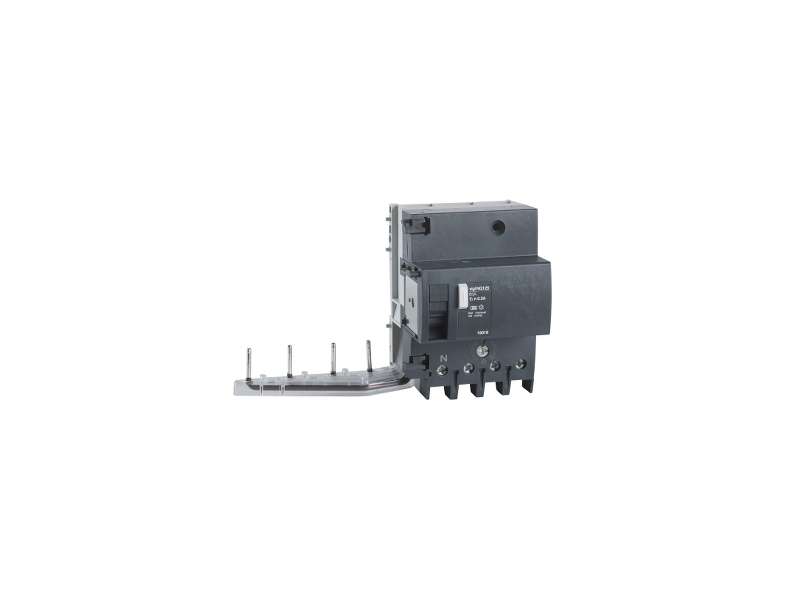

Schneider Electric NG125 - dodatak diferencijalne zaštite - Vigi NG125 - 4P - 125A - 30mA;19101
NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 30mA...
VAT-exclusive price: 153.976,00 |
VAT-inclusive price: 184.771,20 |
NG125 - earth leakage add-on block - Vigi NG125 - 4P - 125A - 30mA
| product or component type | Add-on residual current devices |
|---|---|
| device short name | Vigi NG125 |
| poles description | 4P |
| [In] rated current | 125 A |
| network type | AC |
| earth-leakage sensitivity | 30 mA |
| earth-leakage protection time delay | Instantaneous |
| earth-leakage protection class | Type A-SI (Super Immunised) |
| device location in system | Outgoer |
|---|---|
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 230...415 V AC 50/60 Hz |
| residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| mounting support | 35 mm symmetrical DIN rail |
| electrical connection to mcb | By screws |
| 9 mm pitches | 11 |
| height | 118 mm |
| width | 207 mm |
| depth | 81 mm |
| net weight | 0.8 kg |
| electrical durability | 10000 cycles conforming to IEC 60947-2 |
| connections - terminals |
Tunnel type terminals 10…50 mm² flexible Tunnel type terminals 16…70 mm² rigid |
| wire stripping length | 20 mm |
| tightening torque | 6 N.m |
| standards | IEC 60947-2 |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60947-2 |
| pollution degree | 3 conforming to IEC 60947-2 |
| electromagnetic compatibility | 8/20 µs impulse withstand, 3000 A conforming to IEC 60947-2 |
| tropicalisation | 2 conforming to IEC 60068-1 |
| relative humidity | 95 % at 55 °C |
| operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.018 kg |
| Package 1 Height | 9.4 cm |
| Package 1 Width | 13.8 cm |
| Package 1 Length | 26.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 8.6 kg |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
